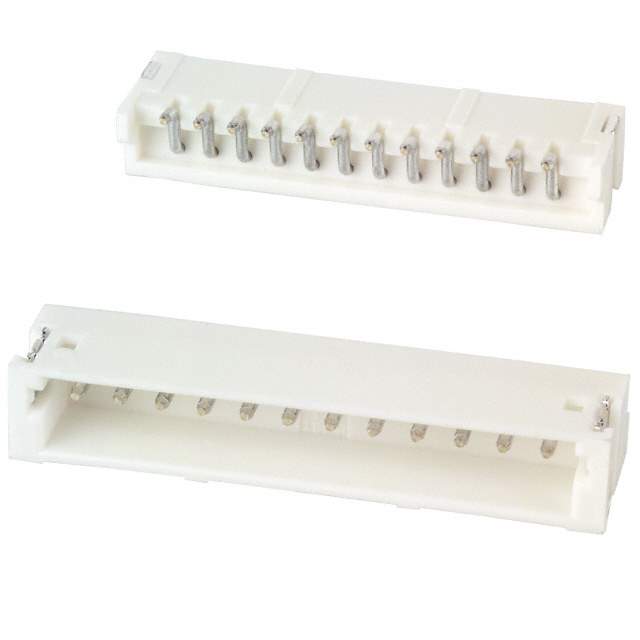

S12B-ZR-SM4A-TF(LF)(SN)

Part No S12B-ZR-SM4A-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 12POS 1.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Number of Positions 12
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style SMT, Right Angle
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.146" (3.70mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA6T), Nylon 6T
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 50V
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 759182-S12B-ZR-SM4A-TF(LF)(SN)
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian S12B-ZR-SM4A-TF(LF)(SN) CAD Model

Description

The JST Sales America Inc. S12B-ZR-SM4A-TF(LF)(SN) is a connector type header that has 12 positions loaded and is shrouded with 4 walls.

  • Pitch-Mating: 0.059" (1.50mm)
  • Design Style: board to cable/wire
  • Current Rating: 1A
  • Temperature Range: -25°C to 85°C
  • Packaging: reel
  • Manufacturer Pack Quantity: 1
  • Contact Material: brass
  • Contact Finish-Mating and Post: tin
  • Insulation Material: polyamide (PA6T), nylon 6T
  • Insulation Color: natural
  • Supply and Demand Status: balanced
