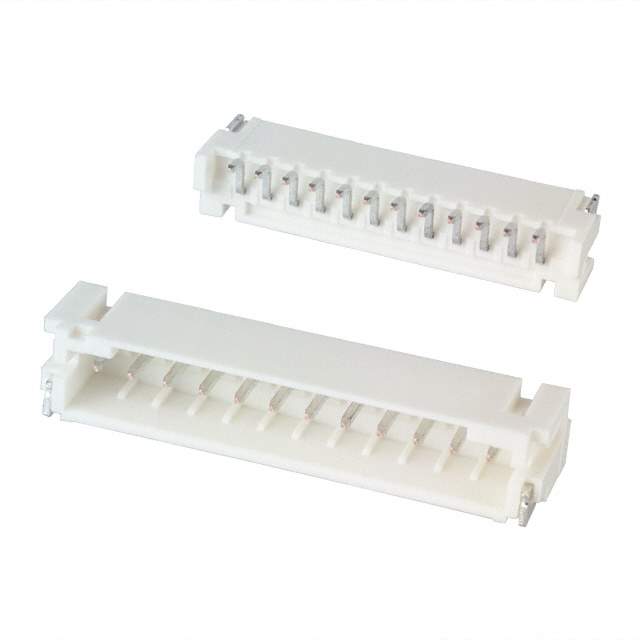

S12B-PH-SM4-TB(LF) Real Image
Same model may have multiple batches, images only for reference.

S12B-PH-SM4-TB(LF)

Part No S12B-PH-SM4-TB(LF)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADR PH SIDE 12POS 2MM SMD
Datasheet
S12B-PH-SM4-TB(LF) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 12
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Insulation Height 0.217" (5.51mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA6T), Nylon 6T
Features Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 2A
Voltage Rating 100V
Mated Stacking Heights 5.5mm
Win Source Part Number 304250-S12B-PH-SM4-TB(LF)
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian S12B-PH-SM4-TB(LF) CAD Model

Description

The JST Sales America Inc. 304250-S12B-PH-SM4-TB(LF) header connector is a male pin type connector with a pitch of 0.079 inches (2.00mm) and a voltage rating of 100V.

  • Connector Type: Header Connector
  • Pin Type: Male Pin
  • Pitch: 0.079 inches (2.00mm)
  • Voltage Rating: 100V
  • Fastening Type: Detent Lock
  • Termination: Solder
  • Shrouded: 4 Walls
  • Current Rating: 2A
  • Mated Stacking Height: 5.5mm
  • Insulation Material: Polyamide (PA6T) and Nylon 6T
  • Contact Material: Copper Alloy
  • Application: Board to Cable/Wire
  • Material Flammability Rating: UL94 V-0
  • Popularity: High
