Same model may have multiple batches, images only for reference.

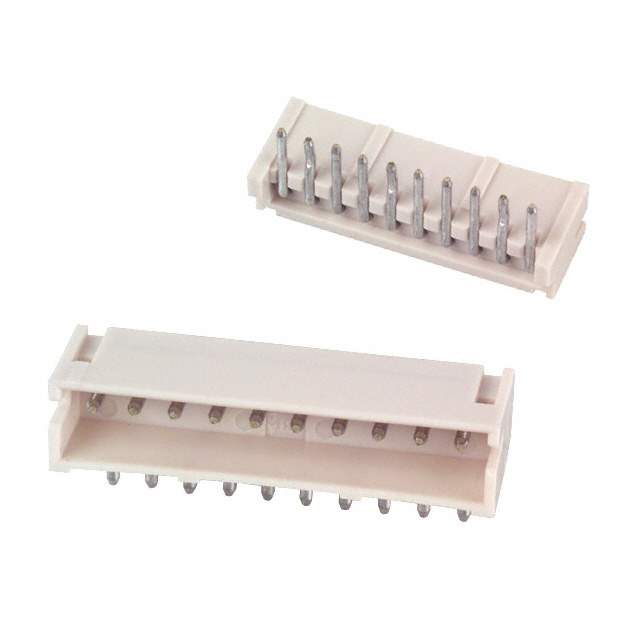

S10B-ZR(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S10B-ZR(LF)(SN)

Part No S10B-ZR(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 10POS 1.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 33 Weeks
Features Connector Header Through Hole, Right Angle 10 position 0.059" (1.50mm)
Manufacturer JST Sales America Inc.
Series ZH
Package Bulk
Operating Temperature Range -25°C ~ 85°C
Mounting Through Hole, Right Angle
Family Name S10B-ZR
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 455-1677, S10BZRLFSN
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 932592-S10B-ZR(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian S10B-ZR(LF)(SN) CAD Model

Description

The 932592-S10B-ZR(LF)(SN) connector header from JST Sales America Inc. is a 10 position through-hole right angle connector.

  • Number of Positions: 10
  • Mounting Type: Through-Hole
  • Orientation: Right Angle
  • Pitch: 1.50mm
  • Series: ZH
  • Operating Temperature: -25°C to 85°C
  • Packaging: Bulk
  • Popularity: High
  • Estimated Production Lead Time: 33 weeks
  • Family Name: S10B-ZR
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
  • Package Quantity: 1000 pieces
  • MSL Level: 1 (unlimited)
  • Other Part Numbers: 455-1677 and S10BZRLFSN
