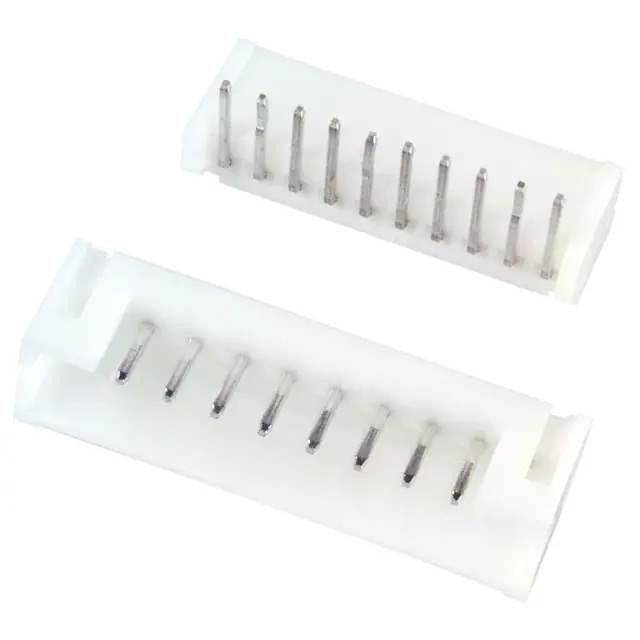

S10B-PH-K-S

Name: S10B-PH-K-S
Brand: JST Sales America Inc.
SKU: 932589
Availability: InStock
Rating: 4.93 (48 reviews)

Get a Quote

Part No	S10B-PH-K-S
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 10POS 2MM / Connector Header Through Hole, Right Angle 10 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	PH
Package	Bulk
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	10
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Press-Fit, Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.130" (3.30mm)
Contact Length - Post	0.134" (3.40mm)
Insulation Height	0.189" (4.80mm)
Contact Shape	Square
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	2A
Voltage Rating	100V
Standard Package	250 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	932589-S10B-PH-K-S
Ultra Librarian 3D Model	Ultra Librarian S10B-PH-K-S CAD Model

Alternative Products

Description

The 932589-S10B-PH-K-S is a header connector from the PH series by JST Sales America Inc.

Series: PH
Positions: 10
Rows: 1
Fastening Type: Detent Lock
Termination Methods: Press-Fit or Solder
Contact Material: Brass
Voltage Rating: 100V
Current Rating: 2A
Insulation Material: Polyamide (PA66) and Nylon 6/6
Flammability Rating: UL94 V-0
Application: Board to Cable/Wire
Mating Pitch: 0.079" (2.00mm)
Contact Finish (Mating): Tin-Lead
Contact Finish (Post): Tin
Contact Length (Mating): 0.130" (3.30mm)
Contact Length (Post): 0.134" (3.40mm)
Temperature Range: -25°C to 85°C
