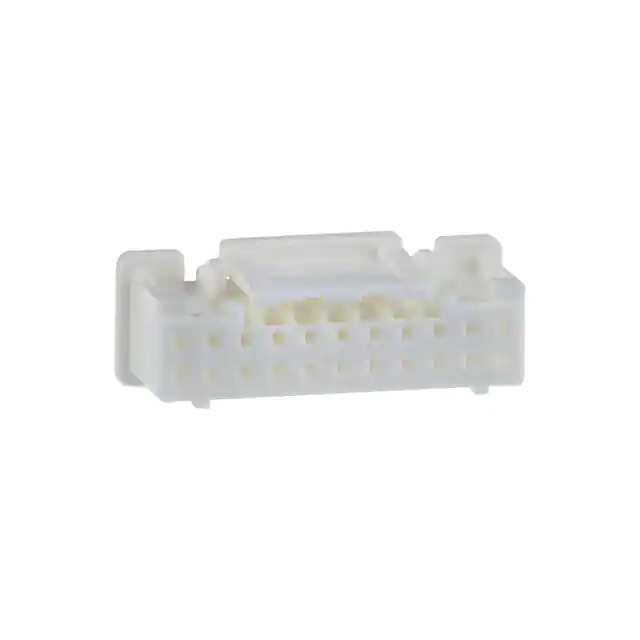

Same model may have multiple batches, images only for reference.

PUDP-22V-S

Name: PUDP-22V-S
Brand: JST Sales America Inc.
SKU: 1365514
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PUDP-22V-S
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT HSG 22POS 2.00MM / 22 Rectangular Connectors - Housings Receptacle Natural 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr	JST Sales America Inc.
Series	PUD
Package	Bulk
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	22
Pitch	0.079" (2.00mm)
Number of Rows	2
Row Spacing	0.079" (2.00mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Color	Natural
Features	-
Temperature Range - Operating	-25°C ~ 85°C
Note	Contacts Not Included
Base Product Number	PUDP-22V
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8538.90.6000
Win Source Part Number	1365514-PUDP-22V-S
Ultra Librarian 3D Model	Ultra Librarian PUDP-22V-S CAD Model

Alternative Products

Description

The 1365514-PUDP-22V-S is a rectangular connector housing from JST Sales America Inc.

Series: PUD
Mounting Type: Free Hanging (In-Line)
Connector Type: Receptacle
Number of Positions: 22
Number of Rows: 2
Fastening Type: Latch Lock
Contact Termination: Crimp
Contact Type: Female Socket
Pitch: 0.079 inches (2.00mm)
Row Spacing: 0.079 inches (2.00mm)
Color: Natural
Operating Temperature: -25°C to 85°C
Status: Active
Packaging: Bulk
Contacts Included: No
