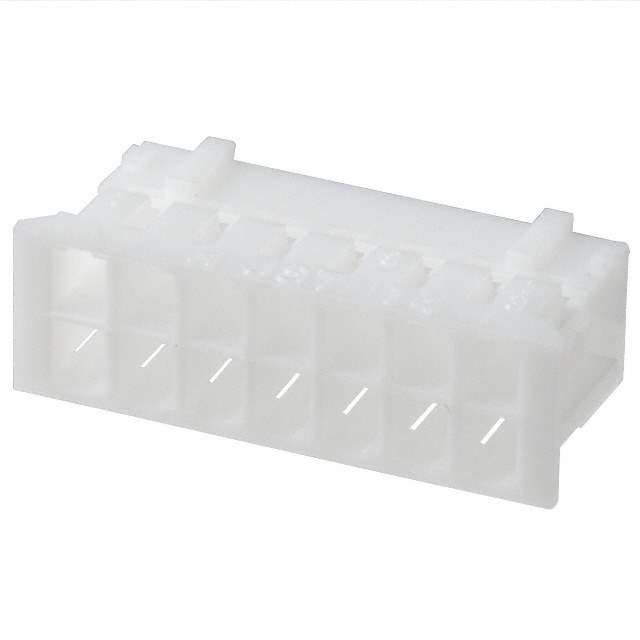

PHDR-14VS

Part No PHDR-14VS
Manufacturer JST Sales America Inc.
Catalog Rectangular - Board to Board Connectors
Description CONN HOUSING PHD 14POS 2MM DUAL / 14 Rectangular Connectors - Housings Receptacle Natural 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr JST Sales America Inc.
Series PHD
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 14
Pitch 0.079" (2.00mm)
Number of Rows 2
Row Spacing 0.079" (2.00mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Color Natural
Note Contacts Not Included
Base Product Number PHDR-14V
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.6000
Other Names PHDR14VS,455-1172
Standard Package 1,000
Win Source Part Number 1183015-PHDR-14VS
Ultra Librarian 3D Model Ultra Librarian PHDR-14VS CAD Model

Description

The JST Sales America Inc. 1183015-PHDR-14VS is a 14-position rectangular connector housing receptacle with female socket contact type. It has a pitch of 0.079 inches (2.00mm), and is designed for free hanging (in-line) mounting. The connector is compatible with crimp contact termination, and the contacts are not included in the package. The connector is available in bulk packaging with a standard package of 1,000 units. The connector is RoHS compliant, and has an ECCN of EAR99. It is a reliable choice for your electronic needs.
