Same model may have multiple batches, images only for reference.

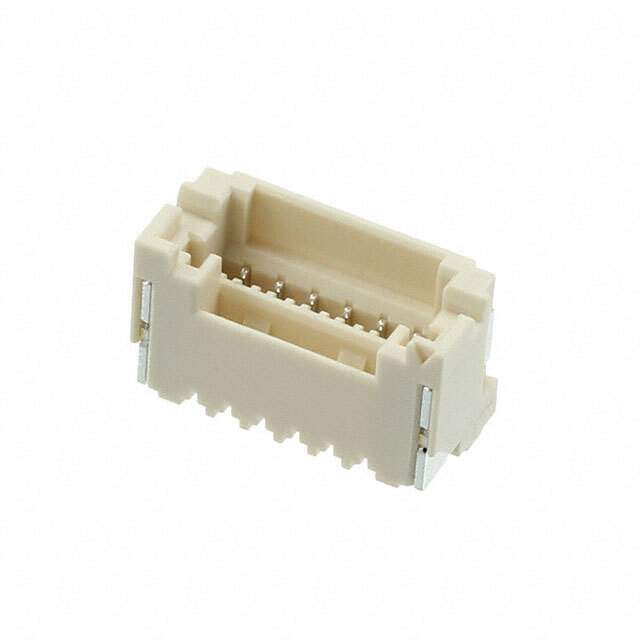

BM06B-ZESS-TBT(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM06B-ZESS-TBT(LF)(SN)

Part No BM06B-ZESS-TBT(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 6POS 1.5MM / Connector Header Surface Mount 6 position 0.059" (1.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series ZE
Package Tape & Reel
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.059" (1.50mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.295" (7.50mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA) , Nylon
Features Pick and Place, Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Mated Stacking Heights 9.4mm
Base Product Number BM06B-ZE
Standard Package 800
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1341482-BM06B-ZESS-TBT(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM06B-ZESS-TBT(LF)(SN) CAD Model

Description

The 1341482-BM06B-ZESS-TBT(LF)(SN) is a 6-position male pin header connector from JST Sales America Inc.

  • Series: ZE
  • Application: Board to cable/wire
  • Fastening Type: Locking ramp
  • Contact Material: Copper alloy
  • Contact Finish: Tin
  • Voltage Rating: 100V
  • Current Rating: 2A
  • Mounting: Surface mount
  • Shrouding: Shrouded 4-wall
  • Insulation Material: Polyamide (PA), nylon
  • Insulation Color: Natural
  • Temperature Range: -25°C to 85°C
  • Contact Length: 0
  • Packaging: Tape & reel
  • Standard Package: 800
