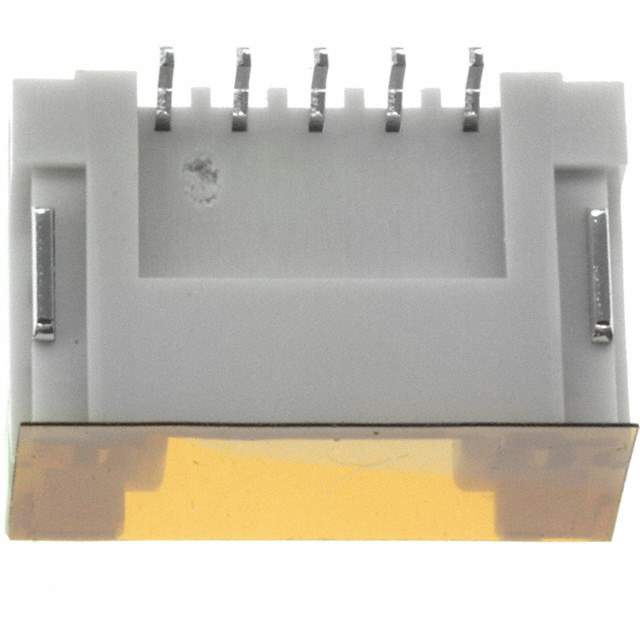

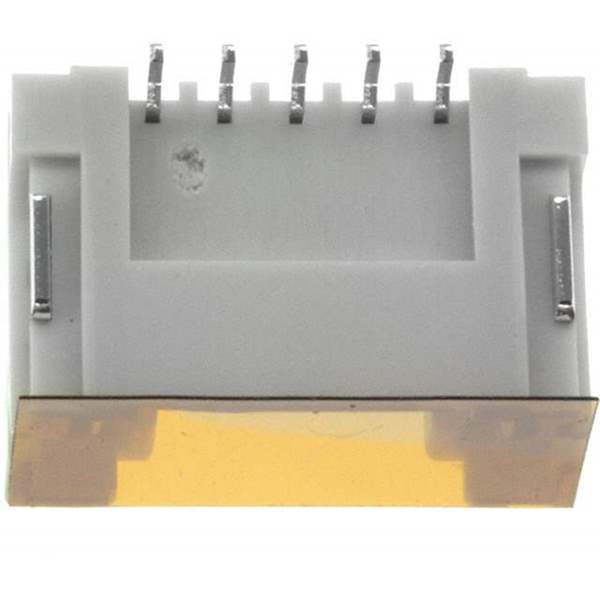

BM05B-ZESS-TBT(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM05B-ZESS-TBT(LF)(SN)

Part No BM05B-ZESS-TBT(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 5POS 1.5MM / Connector Header Surface Mount 5 position 0.059" (1.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series ZE
Package Tape & Reel
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.059" (1.50mm)
Number of Positions 5
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.295" (7.50mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA) , Nylon
Features Pick and Place, Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Mated Stacking Heights 9.4mm
Base Product Number BM05B-ZE
Standard Package 800
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1342320-BM05B-ZESS-TBT(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM05B-ZESS-TBT(LF)(SN) CAD Model

Description

The JST Sales America Inc. ZE Series 5 position header male pin connector is a rectangular connector that is part of the category of connectors.

  • Connector Type: Connector Header
  • Features: Outer Shroud Contact
  • Application: Board to Cable/Wire
  • Termination: Solder
  • Fastening Type: Locking Ramp
  • Packaging: Tape & Reel (TR)
  • Voltage Rating: 100V
  • Current Rating: 2A
  • Insulation Material: Polyamide (PA), Nylon
  • Insulation Color: Natural
  • Pitch - Mating: 0.059" (1.50mm)
  • Contact Finish - Mating: Tin
  • Contact Finish - Post: Tin
  • Features: Shrouded 4 Wall
  • Contact Shape: Rectangular
