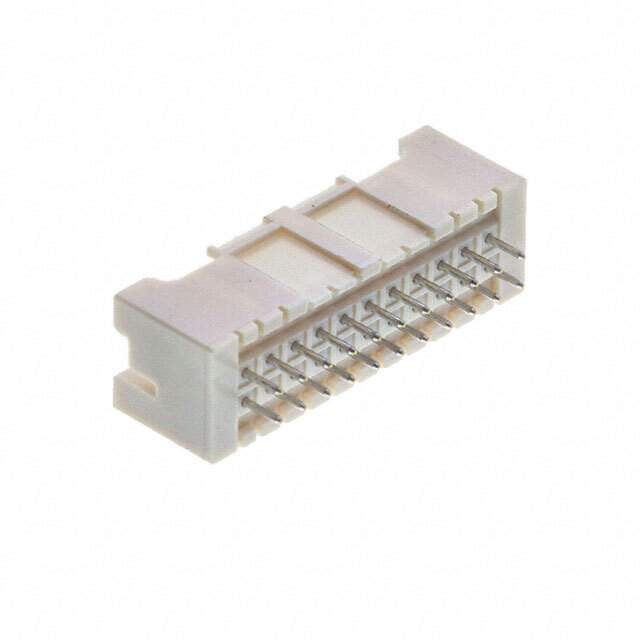

B22B-XADSS-N (LF)(SN)

Name: B22B-XADSS-N (LF)(SN)
Brand: JST Sales America Inc.
SKU: 1332714
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	B22B-XADSS-N (LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 22POS 2.5MM / Connector Header Through Hole 22 position 0.098" (2.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	JST Sales America Inc.
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	22
Number of Rows	2
Row Spacing - Mating	0.098" (2.50mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Post	0.138" (3.50mm)
Insulation Height	0.398" (10.11mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Voltage Rating	250V
Mated Stacking Heights	13.8mm
Base Product Number	B22B-XAD
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	B22B-XADSS-N,B22B-XADSS-N (LF)(SN)-ND,B22B-XADSS-N(LF)(SN),B22B-XADSS-N-ND,455-4176,B22B-XADSS-N(LF)(SN)-ND
Standard Package	100
Win Source Part Number	1332714-B22B-XADSS-N (LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian B22B-XADSS-N (LF)(SN) CAD Model

Alternative Products

Description

This male pin header connector has 22 positions and is designed for board to cable/wire applications.

Number of Positions: 22
Application: Board to Cable/Wire
Pitch: 0.098" (2.50mm)
Contact Material: Copper Alloy
Contact Finish (Mating and Post): Tin
Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
Insulation Color: Natural
Shrouding: 4 Walls
Row Spacing: 0.098" (2.50mm)
Voltage Rating: 250V
Current Rating: 3A
Contact Length (Post): 0.138" (3.50mm)
Insulation Height: 0.398" (10.11mm)
Standard Package: 100
Mounting Type: Through Hole
