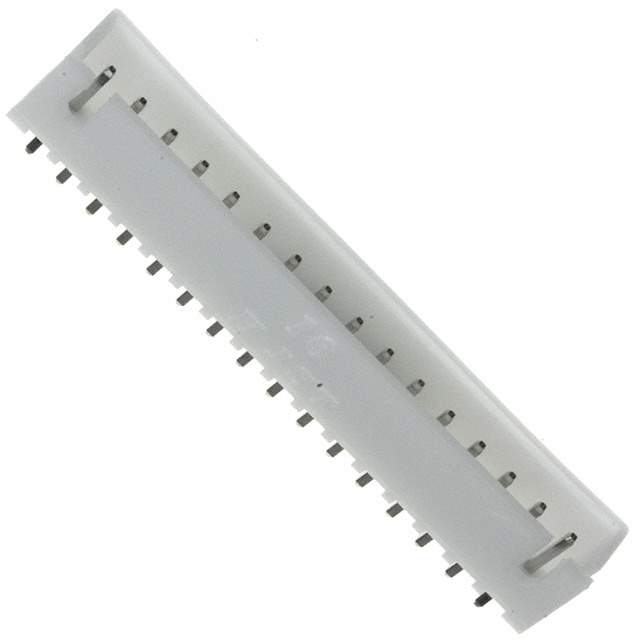

B16B-XH-A(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B16B-XH-A(LF)(SN)

Part No B16B-XH-A(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series XH
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 16
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Detent Lock
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.276" (7.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 9.8mm
Base Product Number B16B-XH
Other Names B16BXHALFSN,455-2241
Standard Package 200
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293245-B16B-XH-A(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B16B-XH-A(LF)(SN) CAD Model

Description

The B16B-XH is a 16-position male pin header connector manufactured by JST Sales America Inc.

  • Product Name: B16B-XH
  • Manufacturer: JST Sales America Inc.
  • Series: XH
  • Positions: 16
  • Applications: Board-to-cable/wire
  • Pitch: 0.098 inches (2.50mm)
  • Current Rating: 3A
  • Voltage Rating: 250V
  • Contact Material: Brass
  • Contact Finish: Tin
  • Shrouding: 4 Walls
  • Fastening: Detent Lock
  • Mounting: Through Hole
  • Lead Style: Straight
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Flammability Rating: UL94 V-0
