Same model may have multiple batches, images only for reference.

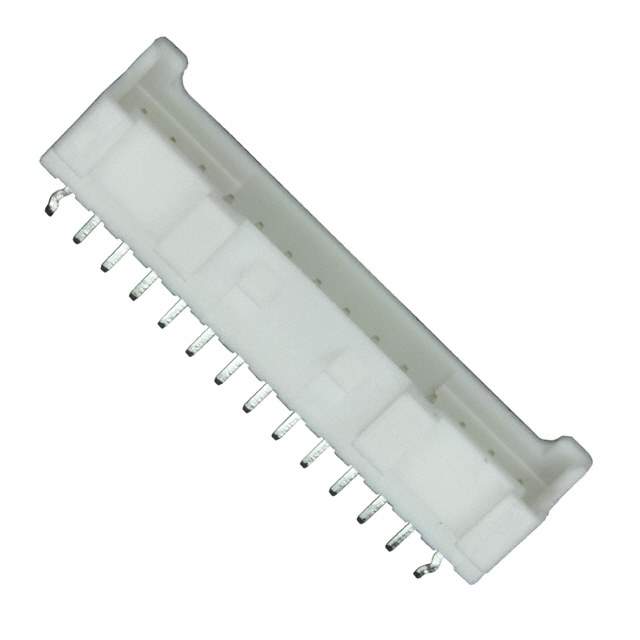

B14B-PASK-1(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B14B-PASK-1(LF)(SN)

Part No B14B-PASK-1(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 14POS 2MM / Connector Header Through Hole 14 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PA
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 14
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.126" (3.20mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.319" (8.10mm)
Insulation Height 0.303" (7.70mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polybutylene Terephthalate (PBT) , Glass Filled
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 9.9mm, 14.7mm, 14.9mm
Base Product Number B14B-PAS
Standard Package 250
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1337759-B14B-PASK-1(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B14B-PASK-1(LF)(SN) CAD Model

Description

The 1337759-B14B-PASK-1(LF)(SN) is a 14-position header connector from JST Sales America Inc. JST Sales America Inc. is the manufacturer and 1337759-B14B-PASK-1(LF)(SN) is the product.

  • Series: PA
  • Application: Board-to-cable and board-to-wire
  • Pin Gender: Male
  • Pin Material: Copper alloy
  • Pins Loaded: All positions
  • Rows: One
  • Termination: Kinked pin, solder
  • Fastening Type: Locking Ramp
  • Package: Bulk
  • Voltage Rating: 250V
  • Current Rating: 3A
  • Insulation Material: Polybutylene terephthalate (PBT), glass filled
  • Flammability Rating: UL94 V-0
  • Mating Pitch: 0.079 inches (2.00mm)
  • Contact Finish: Tin
  • Contact Shape: Square
  • Temperature Range: -25°C to 85°C
