Same model may have multiple batches, images only for reference.

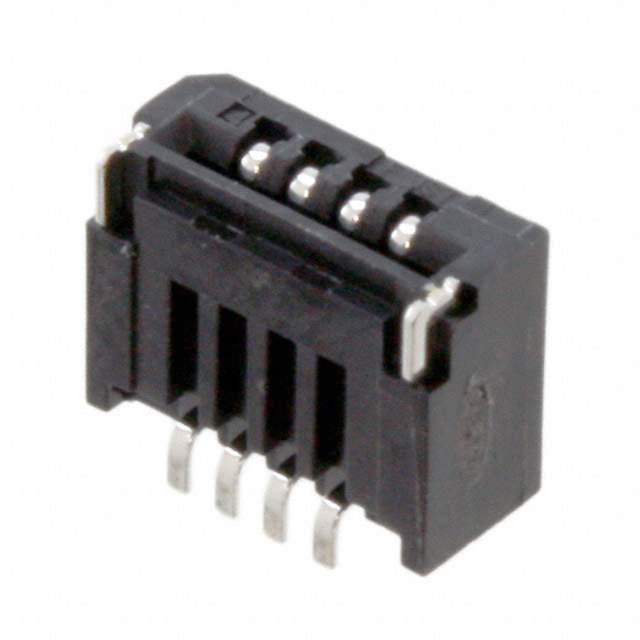

04FMN-SMT-A-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

04FMN-SMT-A-TF(LF)(SN)

Part No 04FMN-SMT-A-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC TOP 4POS 1MM R/A / 4 Position FFC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr JST Sales America Inc.
Series FMN
Package Tape & Reel
Flat Flex Type FFC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 4
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.118" (3.00mm)
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Polyamide (PA6T) , Nylon 6T
Features Low Insertion Force (LIF)
Voltage Rating 50V
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Black
Base Product Number 04FMN-SM
Standard Package 2,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1341030-04FMN-SMT-A-TF(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian 04FMN-SMT-A-TF(LF)(SN) CAD Model

Description

The 1341030-04FMN-SMT-A-TF(LF)(SN) is a connector assembly from JST Sales America Inc.

  • Category: Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors
  • Series: FMN
  • Positions: 4
  • Pitch: 0.039" (1.00mm)
  • Features: Low Insertion Force (LIF)
  • Termination: Solder
  • Contact Finish: Tin
  • Package: Tape & Reel
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 50V
  • Height Above Board: 0.118" (3.00mm)
  • Flat Flex Type: FFC
  • Connector/Contact Type: Contacts, Top
  • FFC, FCB Thickness: 0.30mm
  • Locking Feature: No Locking
  • Cable End Type: Straight
  • Housing Material: Polyamide (PA6T) , Nylon 6T
  • Actuator Material: Not Specified
  • Material Flammability Rating: UL94 V-0
  • Housing Color: Black
  • Standard Package: 2,000 Connectors
  • Mating Cycles: Not Specified
  • Mounting Type: Surface Mount, Right Angle
  • Temperature Range: -25°C to 85°C
  • MSL Level: 1 (Unlimited)
  • Current Rating (Amps): 0.5A
  • HTSUS: 8536.69.4051
