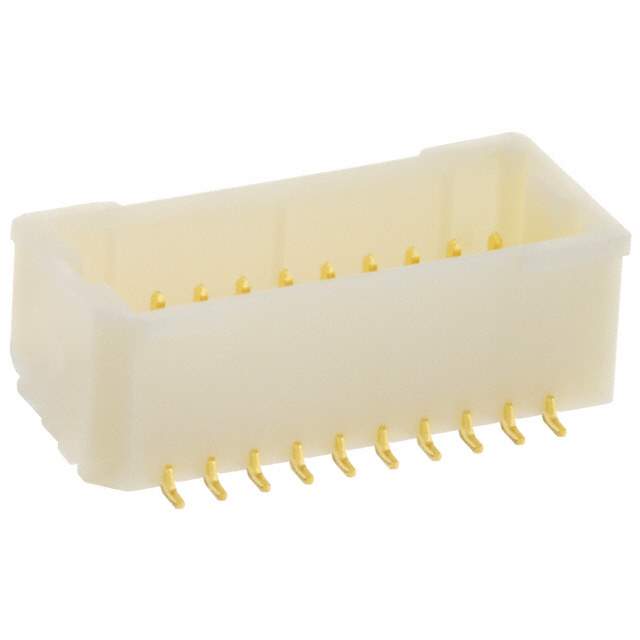

BM20B-SRDS-G-TF(LF)(SN) JST Sales America Inc. BM20B-SRDS-G-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.
BM20B-SRDS-G-TF(LF)(SN) JST Sales America Inc. BM20B-SRDS-G-TF(LF)(SN) Real Image
BM20B-SRDS-G-TF(LF)(SN) JST Sales America Inc. BM20B-SRDS-G-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM20B-SRDS-G-TF(LF)(SN)

Part No BM20B-SRDS-G-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SHD 20POS TOP 1MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Series SHD
Packaging Reel - TR
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 20
Number of Positions Loaded All
Number of Rows 2
Mounting SMD
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.167" (4.25mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Solder Retention
Operating Temperature Range -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 1A
Voltage Rating 50V
Mated Stacking Heights 6.3mm
Win Source Part Number 759643-BM20B-SRDS-G-TF(LF)(SN)
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name SHD
Introduction Date March 17, 2010
ECCN EAR99
Halogen Free Unknown
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian BM20B-SRDS-G-TF(LF)(SN) CAD Model

Description

This JST Sales America Inc. connector is a header with 20 positions and a pitch of 0.039" (1.00mm).

  • Positions: 20
  • Pitch: 0.039" (1.00mm)
  • Design: Shrouded 4-wall
  • Contact Type: Male Pin
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 50V
  • Current Rating: 1A
  • Mounting Type: SMD
