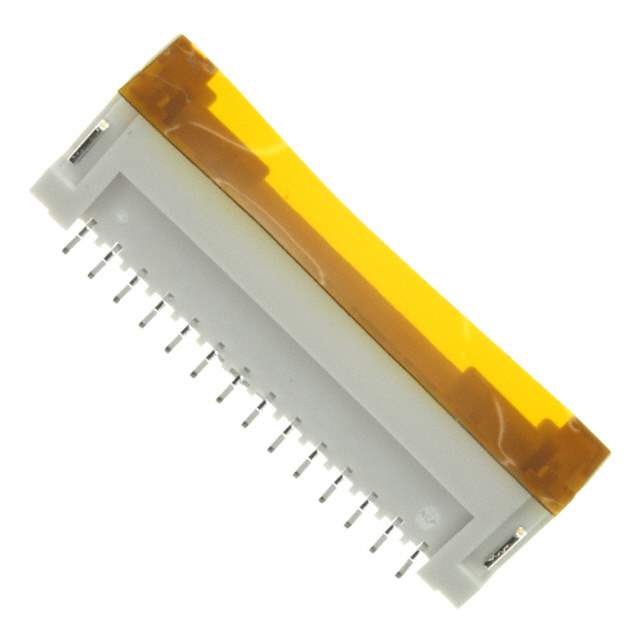

BM14B-ZESS-TBT(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM14B-ZESS-TBT(LF)(SN)

Part No BM14B-ZESS-TBT(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 14POS 1.5MM / Connector Header Surface Mount 14 position 0.059" (1.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series ZE
Package Tape & Reel
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.059" (1.50mm)
Number of Positions 14
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.295" (7.50mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Pick and Place, Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Mated Stacking Heights 9.4mm
Base Product Number BM14B-ZE
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 455-2392-2,BM14B-ZESS-TBT (LF)(SN),BM14B-ZESS-TBT(LF)(SN)-,455-2392-6,BM14BZESSTBTLFSN,BM14B-ZESS-TBT(LF)(SN)-ND,455-4210-1,455-4210-2,455-2392-2-ND,455-2392-1,455-4210-6
Standard Package 800
Win Source Part Number 1010424-BM14B-ZESS-TBT(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM14B-ZESS-TBT(LF)(SN) CAD Model

Description

The BM14B-ZESS-TBT(LF)(SN) is a header connector from JST Sales America Inc.

  • Connector Type: Rectangular Connector
  • Pin Gender: Male
  • Series: ZE
  • Number of Positions: 14
  • Connection Type: Board to Cable/Wire
  • Features: Outer Shroud Contacts, Locking Ramp
  • Material: Copper Alloy
  • Voltage Rating: 100V
  • Mounting Type: Surface Mount Technology (SMT)
  • Packaging: Tape and Reel
  • Insulation Material: Polyamide (PA) and Nylon
  • Material Flammability Rating: UL94 V-0
  • Temperature Range: -25°C to 85°C
  • ECCN: EAR99
  • Current Rating: 2A
