Same model may have multiple batches, images only for reference.

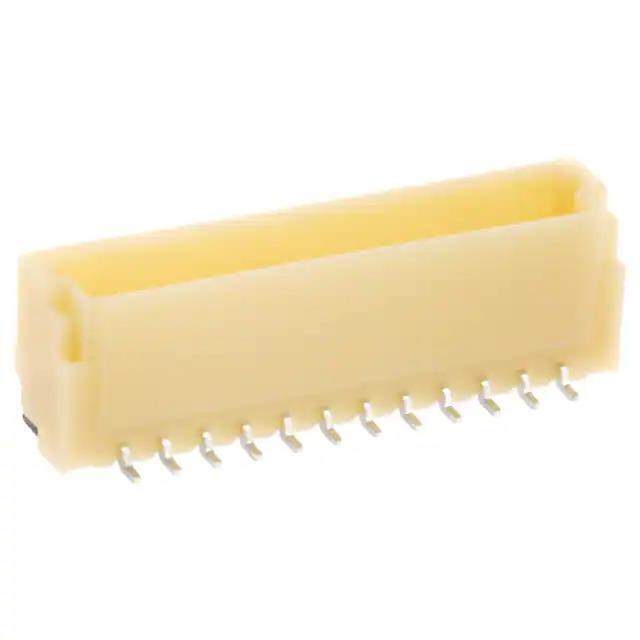

BM12B-SRSS-TB Real Image
Same model may have multiple batches, images only for reference.

BM12B-SRSS-TB

Part No BM12B-SRSS-TB
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description Disconnectable Insulation displacement connectors | CONN HEADER SMD 12POS 1MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Cut Tape (CT)
Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Number of Positions 12
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style SMD
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.167" (4.25mm)
Contact Shape Square
Contact Finish - Mating Tin-Lead
Contact Finish - Post Tin-Lead
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 0.7A
Voltage Rating 50V
Mated Stacking Heights 4.9mm
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 752388-BM12B-SRSS-TB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BM12B-SRSS-TB CAD Model

Description

The JST Sales America Inc BM12B-SRSS-TB is an electronic component manufactured by JST Sales America Inc.

  • Component: Connector
  • Positions: 12
  • Mounting: SMD
  • Feature: Solder Retention
  • Contact Type: Male Pin
  • Application: Board to Cable/Wire
  • Pitch-Mating: 0.039 inches
  • Status: Obsolete
  • Supply and Demand: Balanced
  • Reliability: Meets Industry Standards
