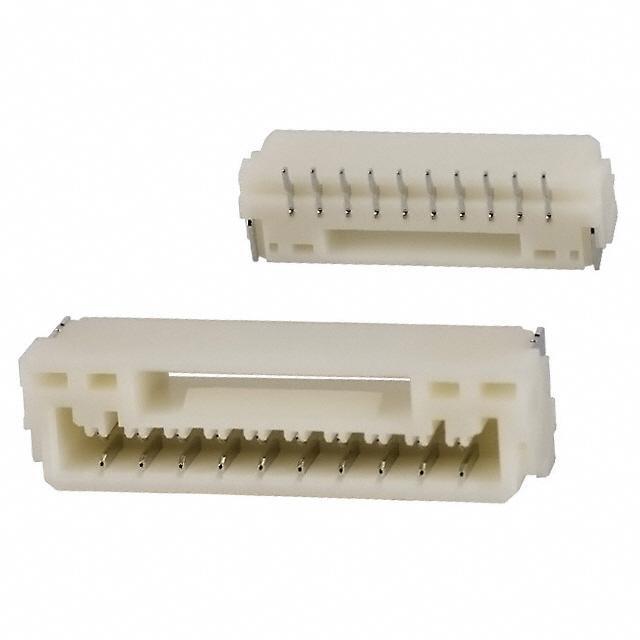

BM10B-GHS-TBT(LF)(SN)(N) JST Sales America Inc.
Same model may have multiple batches, images only for reference.

BM10B-GHS-TBT(LF)(SN)(N)

Part No BM10B-GHS-TBT(LF)(SN)(N)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER GH TOP 10POS 1.25MM / Conn Shrouded Header HDR 10 POS 1.25mm Solder ST Top Entry SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Series GH
Packaging Reel package
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.049" (1.25mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 10
Number of Positions Loaded All
Number of Rows 1
Mounting SMD
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.159" (4.05mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA9T), Nylon 9T
Features Pick and Place, Solder Retention
Operating Temperature Range -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 1A
Voltage Rating 50V
Mated Stacking Heights 7.3mm
Win Source Part Number 770247-BM10B-GHS-TBT(LF)(SN)(N)
Popularity Medium
Supply and Demand Status Limited
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian BM10B-GHS-TBT(LF)(SN)(N) CAD Model

Description

The JST Sales America Inc. 770247-BM10B-GHS-TBT(LF)(SN)(N) is a GH series connector with a reel package and 10 positions.

  • Operating Temperature: -25°C to 85°C
  • Features: Pick and place, solder retention
  • Contact Type: Header connector
  • Shroud: Outer shroud contact
  • Positions Loaded: All positions loaded
  • Voltage Rating: 50V
  • Current Rating: 1A
  • Style: Board to cable/wire
  • Pitch-Mating: 0.049" (1.25mm)
  • Contact Finish-Mating and Post: Tin
  • Supply and Demand Status: Limited
