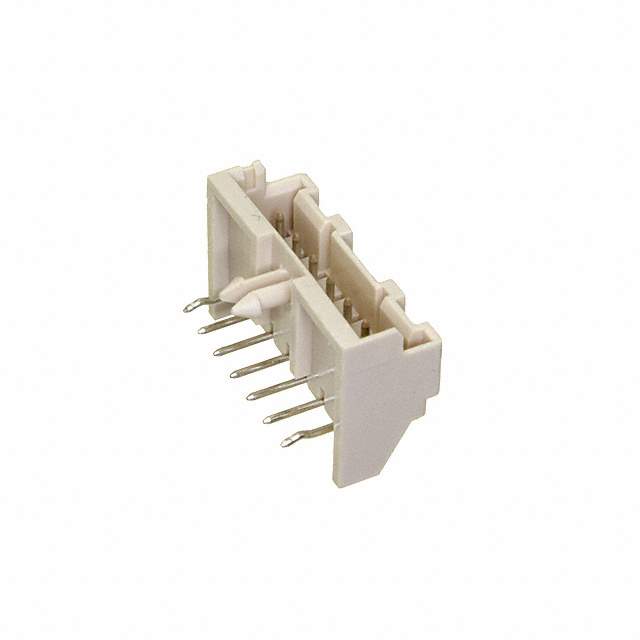

BM07B-XASS-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM07B-XASS-TF(LF)(SN)

Part No BM07B-XASS-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HDR XA 7POS 2.5MM TIN SMD
Datasheet
BM07B-XASS-TF(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 2.50mm
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 7
Number of Positions Loaded All
Number of Rows 1
Mounting SMD (SMT)
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.370" (9.40mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 3A
Voltage Rating 250V
Mated Stacking Heights 11.9mm
Win Source Part Number 124887-BM07B-XASS-TF(LF)(SN)
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian BM07B-XASS-TF(LF)(SN) CAD Model

Description

Product Description

The BM07B-XASS-TF(LF)(SN) epitomizes innovation and precision in electronic connectors. Crafted for efficiency, it offers optimal conductive performance even under challenging conditions, making it a top choice for cutting-edge projects.
