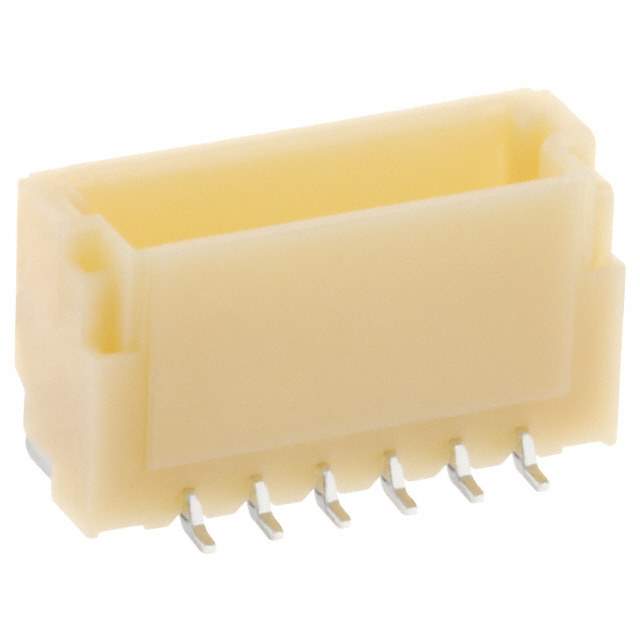

Same model may have multiple batches, images only for reference.

BM06B-SRSS-TB

Name: BM06B-SRSS-TB
Brand: JST Sales America Inc.
SKU: 810389
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	BM06B-SRSS-TB
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 6POS 1MM / 1.0mm pitch/Disconnectable Crimp style connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	JST Sales America Inc.
Packaging	Reel
Part Status	Obsolete (End Of Life)
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.039" (1.00mm)
Number of Positions	6
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Style	SMD
Termination	Solder
Fastening Type	Push-Pull
Insulation Height	0.167"
Contact Shape	Square
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA), Nylon
Features	Solder Retention
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	0.7A
Voltage Rating	50V
Mated Stacking Heights	4.9mm
Manufacturer Pack Quantity	1,500
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Limited
Win Source Part Number	810392-BM06B-SRSS-TB
Ultra Librarian 3D Model	Ultra Librarian BM06B-SRSS-TB CAD Model

Alternative Products

Description

The JST Sales America Inc. 810392-BM06B-SRSS-TB is a male pin header connector suitable for board to cable/wire style connections.

Pitch-Mating: 0.039 inches (1.00mm)
Mounting Type: Surface Mount
Contact Shape: Square
Current Rating: 0.7A
Contact Material: Copper alloy
Contact Finish: Tin-lead
Voltage Rating: 50V
Temperature Range: -25°C to 85°C
Insulation Material: Polyamide (PA) and nylon
Flammability Rating: UL94 V-0
Packaging: Reel
Manufacturer Pack Quantity: 1,500
