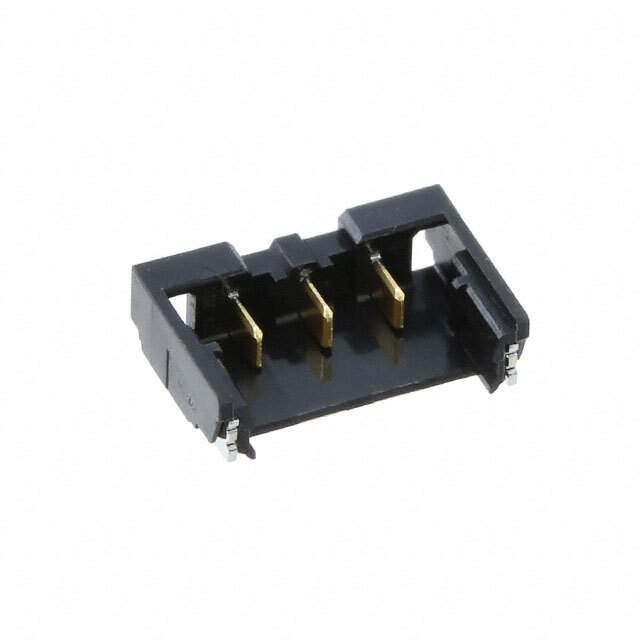

BM03B-AUHKS-GA-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM03B-AUHKS-GA-TB(LF)(SN)

Part No BM03B-AUHKS-GA-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 3POS / Connector Header Surface Mount, Right Angle 3 position
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series AUH
Package Tape & Reel
Connector Type Header
Contact Type Male Blade
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.073" (1.85mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Material Copper Alloy
Insulation Material Thermoplastic
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 30V
Base Product Number BM03B-AU
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 455-2901-6,BM03B-AUHKS-GA-TB (LF) (SN),BM03BAUHKSGATBLFSN,455-2901-1,455-2901-2
Standard Package 5,000
Win Source Part Number 991405-BM03B-AUHKS-GA-TB(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM03B-AUHKS-GA-TB(LF)(SN) CAD Model

Description

The 991405-BM03B-AUHKS-GA-TB(LF)(SN) is a male blade header connector with 3 positions loaded all in a single row.

  • Positions: 3
  • Row Count: 1
  • Fastening Type: Detent Lock
  • Termination: Solder
  • Contact Material: Copper Alloy
  • Voltage Rating: 30V
  • Insulation Material: Thermoplastic
  • Insulation Color: Black
  • Shrouded: Yes, 3 Walls
  • Contact Shape: Rectangular
  • Operating Temperature: -25°C to 85°C
  • Application: Board to Cable/Wire
  • Package: Tape and Reel
