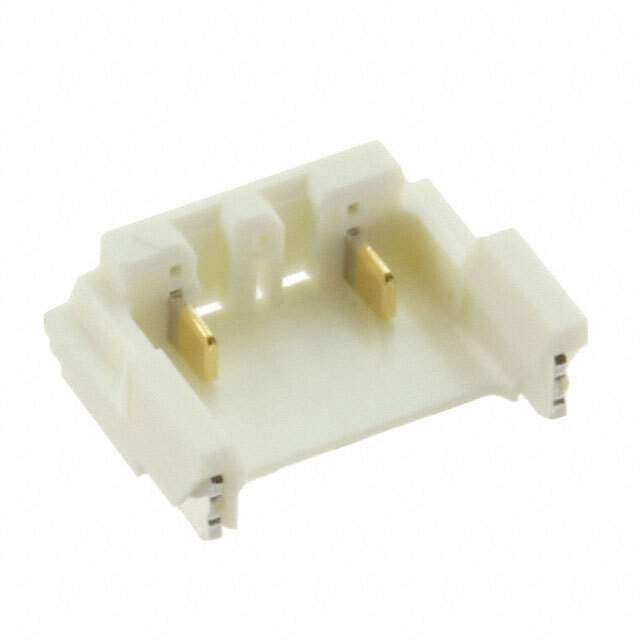

BM02(3)B-ADHSS-GAN-ETB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM02(3)B-ADHSS-GAN-ETB(LF)(SN)

Part No BM02(3)B-ADHSS-GAN-ETB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 3POS 1.3MM / Connector Header Surface Mount, Right Angle 3 position 0.051" (1.30mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series ADH
Package Tape & Reel
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.051" (1.30mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded 2
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.069" (1.75mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Material Copper Alloy
Insulation Material Thermoplastic
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color White
Current Rating (Amps) 3A
Voltage Rating 30V
Base Product Number BM02(3)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names BM023BADHSSGANETBLFSN,455-2895-1,455-2895-6,455-2895-2
Standard Package 5,000
Win Source Part Number 973492-BM02(3)B-ADHSS-GAN-ETB(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM02(3)B-ADHSS-GAN-ETB(LF)(SN) CAD Model

Description

This male blade header connector from JST Sales America Inc. is designed for board to cable/wire applications.

  • Positions Loaded: 3 positions loaded with 2 male blade contacts
  • Feature: Solder retention
  • Material: Copper alloy
  • Voltage Rating: 30V
  • Mounting: Surface mount and right angle mounting
  • Fastening: Detent lock
  • Flammability Rating: UL94 V-0
  • Temperature Range: -25°C to 85°C
  • Standard Package: 5,000
