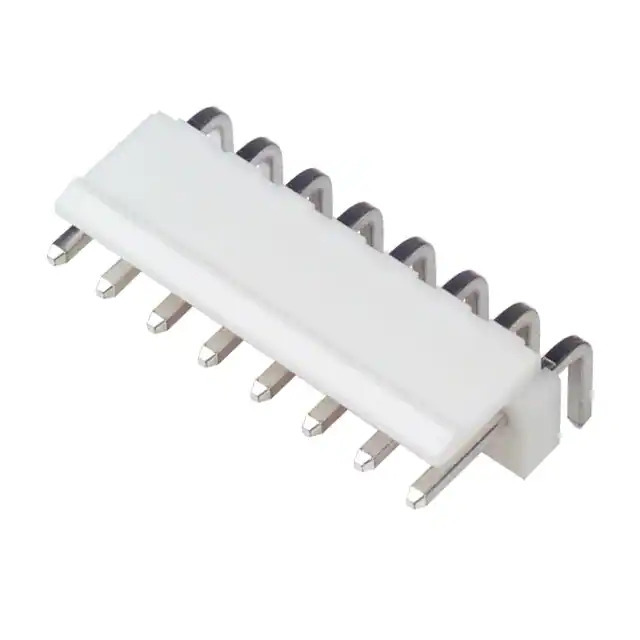

Same model may have multiple batches, images only for reference.

B8PS-VH(LF)(SN)

Name: B8PS-VH(LF)(SN)
Brand: JST Sales America Inc.
SKU: 1354604
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B8PS-VH(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 8POS 3.96MM / Connector Header Through Hole, Right Angle 8 position 0.156" (3.96mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	VH
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.156" (3.96mm)
Number of Positions	8
Number of Rows	1
Row Spacing - Mating	-
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 1 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Mating	0.303" (7.70mm)
Contact Length - Post	0.142" (3.60mm)
Overall Contact Length	-
Insulation Height	0.335" (8.51mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Features	-
Temperature Range - Operating	-25°C ~ 85°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	10A
Voltage Rating	250V
Mated Stacking Heights	-
Contact Finish Thickness - Post	-
Applications	-
Base Product Number	B8PS-VH
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1354604-B8PS-VH(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian B8PS-VH(LF)(SN) CAD Model

Alternative Products

Description

The 1354604-B8PS-VH(LF)(SN) is a male pin header connector from JST Sales America Inc. JST Sales America Inc.

Series: VH
Base Product Number: B8PS-VH
Positions: 8
Rows: 1
Pitch: 0.156" (3.96mm)
Mounting Type: Through-Hole, Right Angle
Temperature Range: -25°C to 85°C
Current Rating: 10A
Connection Style: Board to Cable/Wire
Shrouding: 1 Wall
Fastening Type: Locking Ramp
Termination: Solder
Contact Finish: Tin
Insulation Material: Polyamide (PA66), Nylon 6/6
Color: Natural
Status: Active
Packaging: Bulk
Voltage Rating: 250V
