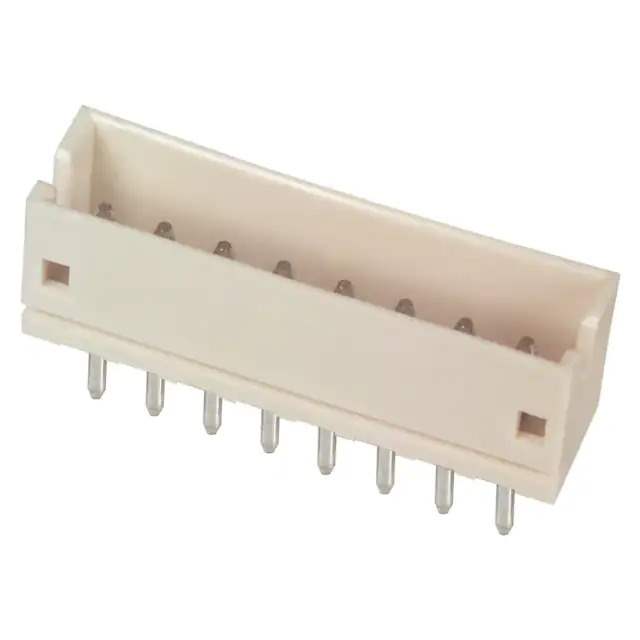

Same model may have multiple batches, images only for reference.

B8B-ZR(LF)(SN)

Name: B8B-ZR(LF)(SN)
Brand: JST Sales America Inc.
SKU: 850113
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B8B-ZR(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 8POS 1.5MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	ZH
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.059" (1.50mm)
Number of Positions	8
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.094" (2.40mm)
Contact Length - Post	0.106" (2.69mm)
Overall Contact Length	0.256" (6.50mm)
Insulation Height	0.177" (4.50mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	1A
Voltage Rating	50V
Mated Stacking Heights	5.6mm
Base Product Number	B8B-ZR
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	850113-B8B-ZR(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian B8B-ZR(LF)(SN) CAD Model

Alternative Products

Description

The 850113-B8B-ZR(LF)(SN) is a header connector with male pins from the ZH series.

Manufacturer: JST Sales America Inc.
Series: ZH
Type: Header, Male Pins
Number of Positions: 8
Contact Material: Brass
Voltage Rating: 50V
Packaging: Bulk
Standard Package: 1,000
Contact Finish - Mating: Tin
Shrouding: Shrouded - 4 Wall
Fastening Type: Detent Lock
Operating Temperature: -25°C ~ 85°C
Product Status: Active
