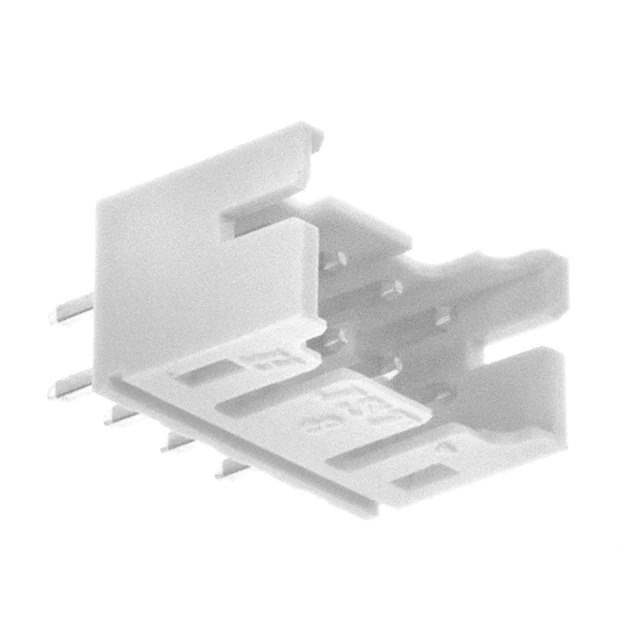

B8B-PHDSS(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B8B-PHDSS(LF)(SN)

Part No B8B-PHDSS(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 8POS 2MM / Connector Header Through Hole 8 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PHD
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 8
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.114" (2.90mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.291" (7.40mm)
Insulation Height 0.256" (6.50mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon, Glass Filled
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 8.8mm
Base Product Number B8B-PHDS
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 850323-B8B-PHDSS(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B8B-PHDSS(LF)(SN) CAD Model

Description

The 850323-B8B-PHDSS(LF)(SN) is a male pin header connector from the PHD series. It is manufactured by JST Sales America Inc.

  • Number of Positions: 8
  • Fastening Type: Detent Lock
  • Contact Material: Copper Alloy
  • Voltage Rating: 250V
  • Application: Board to Cable/Wire
  • Pitch: 0.079" (2.00mm)
  • Contact Finish: Tin
  • Insulation Material: Polyamide (PA), Nylon, Glass Filled
  • Mounting Type: Through Hole
  • Row Configuration: Dual Row
  • Row Spacing: 0.079" (2.00mm)
  • Contact Length: 0.118" (3.00mm)
  • Overall Contact Length: 0.291" (7.40mm)
  • Insulation Height: 0.256" (6.50mm)
  • Operating Temperature: -25°C to 85°C
  • Product Status: Active
  • Standard Package: 500 pcs
