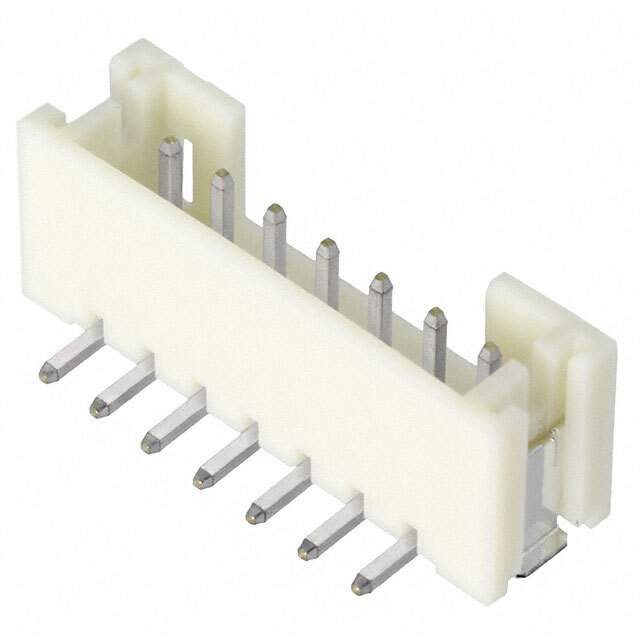

B7B-PH-SM4-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B7B-PH-SM4-TB(LF)(SN)

Part No B7B-PH-SM4-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER PH TOP 7POS 2MM SMD
Datasheet
B7B-PH-SM4-TB(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Series PH
Packaging Reel - TR
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 7
Number of Positions Loaded All
Number of Rows 1
Mounting SMD
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Insulation Height 0.260" (6.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA6T), Nylon 6T
Features Solder Retention
Operating Temperature Range -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 2A
Voltage Rating 100V
Mated Stacking Heights 8.6mm
RoHS State Request Verification
Win Source Part Number 729887-B7B-PH-SM4-TB(LF)(SN)
Popularity Medium
Supply and Demand Status Limited
Family Name PH
Introduction Date October 18, 2005
ECCN EAR99
Halogen Free Unknown
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian B7B-PH-SM4-TB(LF)(SN) CAD Model

Description

The 729887-B7B-PH-SM4-TB(LF)(SN) is a connector header manufactured by JST Sales America Inc.

  • Series: PH
  • Contact Type: Male Pin
  • Positions Loaded: 7
  • Connector Type: Header
  • Fastening Type: Detent Lock
  • Voltage Rating: 100V
  • Current Rating: 2A
  • Insulation Material: Polyamide (PA6T), Nylon 6T
  • Insulation Color: Natural
  • Contact Finish (Mating and Post): Tin
  • Supply and Demand Status: Limited
