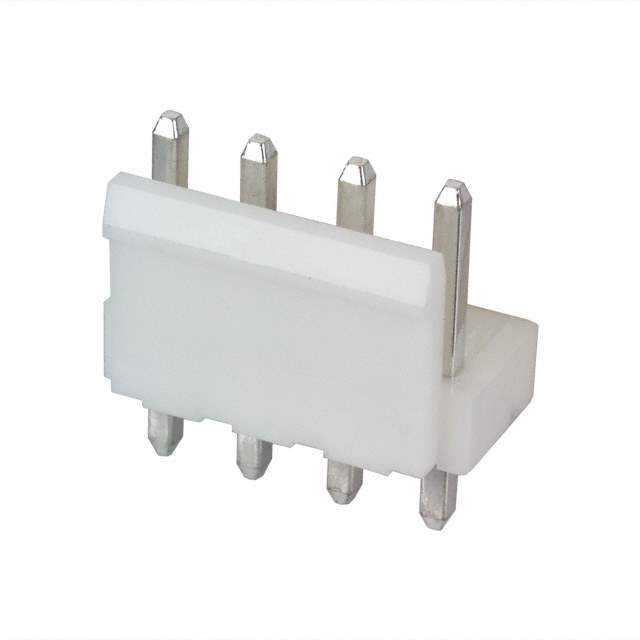

B4P-VH(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B4P-VH(LF)(SN)

Part No B4P-VH(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VH TOP 4POS 3.96MM / Conn Wire to Board HDR 4 POS 3.96mm Solder ST Top Entry Thru-Hole Box
Datasheet
B4P-VH(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Series VH
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Number of Positions 4
Number of Positions Loaded All
Number of Rows 1
Mounting Style Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.303" (7.70mm)
Contact Length - Post 0.146" (3.70mm)
Overall Contact Length 0.575" (14.60mm)
Insulation Height 0.370" (9.40mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Operating Temperature Range -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 10A
Voltage Rating 250V
Mated Stacking Heights 16.5mm
Win Source Part Number 769522-B4P-VH(LF)(SN)
Popularity Medium
Supply and Demand Status Balance
Family Name VH
Introduction Date September 03, 2008
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian B4P-VH(LF)(SN) CAD Model

Description

The JST Sales America Inc. 769522-B4P-VH(LF)(SN) is a through-hole header connector with a locking ramp fastening type.

  • Positions: Four
  • Contact Type: Male Pin
  • Contact Material: Brass
  • Contact Finish (Mating & Post): Tin Plating
  • Voltage Rating: 250V
  • Current Rating: 10A
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Insulation Color: Natural
  • Pitch: 0.156-inch (3.96mm)
  • Mated Stacking Height: 16.5mm
  • Insulation Height: 0.370 inches (9.40mm)
  • Overall Contact Length: 0.575 inches (14.60mm)
  • Flammability Rating: UL94 V-0
  • Style: Board to Cable/Wire
  • Series: VH
  • Shrouding: One Wall
