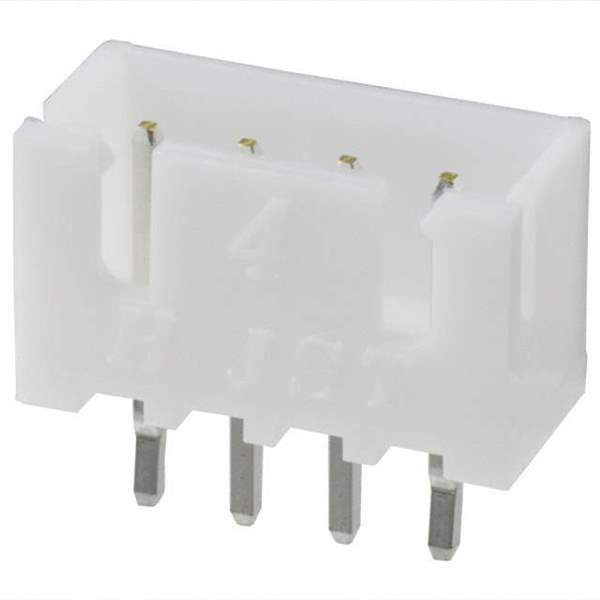

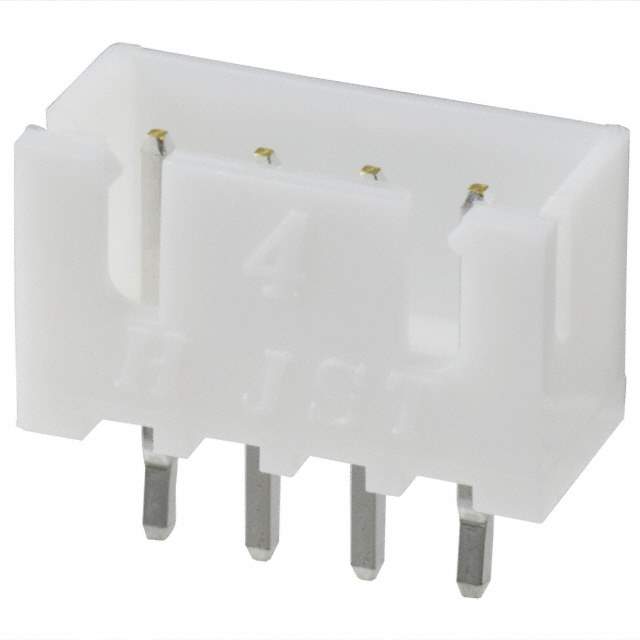

B4B-XH-A(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B4B-XH-A(LF)(SN)

Part No B4B-XH-A(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER XH TOP 4POS 2.5MM
Datasheet
B4B-XH-A(LF)(SN) Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 2.50mm
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 4
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole
Termination Press-Fit, Solder
Fastening Type Detent Lock
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.276" (7.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 3A
Voltage Rating 250V
Mated Stacking Heights 9.8mm
Win Source Part Number 095439-B4B-XH-A(LF)(SN)
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B4B-XH-A(LF)(SN) CAD Model

Description

Product Description: B4B-XH-A(LF)(SN)

The B4B-XH-A(LF)(SN) delivers exceptional connectivity performance and is constructed using lead-free and environmentally friendly materials. It balances function and sustainability, catering to eco-conscious applications.

Features and Benefits:

  • Eco-friendly, lead-free composition.
  • Enhanced performance in high-frequency applications.
  • Robust design for long-lasting use.

Applications/Projects:

  • Green technology systems
  • Computer hardware
  • Network infrastructure

Choose the B4B-XH-A(LF)(SN) for sustainable, high-efficiency electronic projects.
