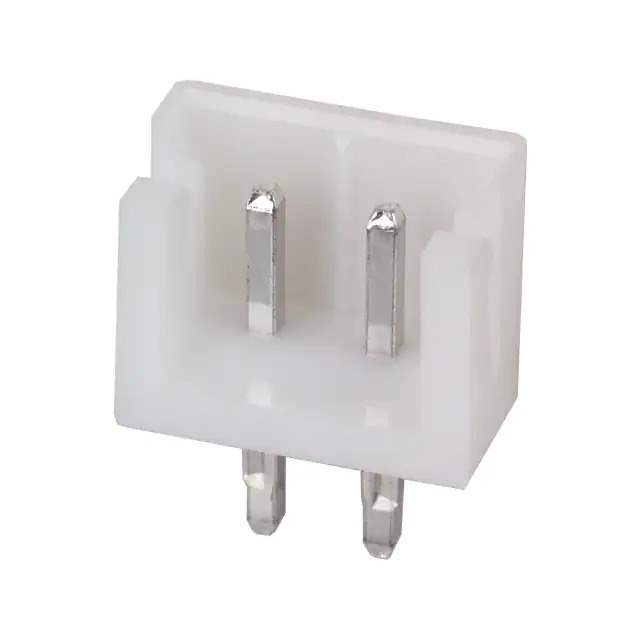

Same model may have multiple batches, images only for reference.

B2B-EH-A

Name: B2B-EH-A
Brand: JST Sales America Inc.
SKU: 850528
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B2B-EH-A
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 2POS 2.5MM / Connector Header Through Hole 2 position 0.098" (2.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	EH
Package	Bulk
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	2
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 3 Wall
Mounting Type	Through Hole
Termination	Press-Fit, Solder
Fastening Type	Friction Lock
Contact Length - Mating	0.130" (3.30mm)
Contact Length - Post	0.126" (3.20mm)
Insulation Height	0.236" (6.00mm)
Contact Shape	Square
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Voltage Rating	250V
Mated Stacking Heights	8.1mm
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	850528-B2B-EH-A
Ultra Librarian 3D Model	Ultra Librarian B2B-EH-A CAD Model

Alternative Products

Description

The 850528-B2B-EH-A is a male pin header connector from the EH series.

Series: EH
Positions: 2
Fastening: Friction Lock
Material: Brass
Voltage Rating: 250V
Termination: Press-Fit and Solder
Application: Board to Cable/Wire
Mating Pitch: 0.098" (2.50mm)
Contact Finish (Mating and Post): Tin-Lead
Insulation Material: Polyamide (PA66) and Nylon 6/6
Operating Temperature: -25°C to 85°C
Packaging: Bulk (1,000 pcs)
Insulation Height: 0.236" (6.00mm)
Contact Shape: Square
Product Status: Obsolete
