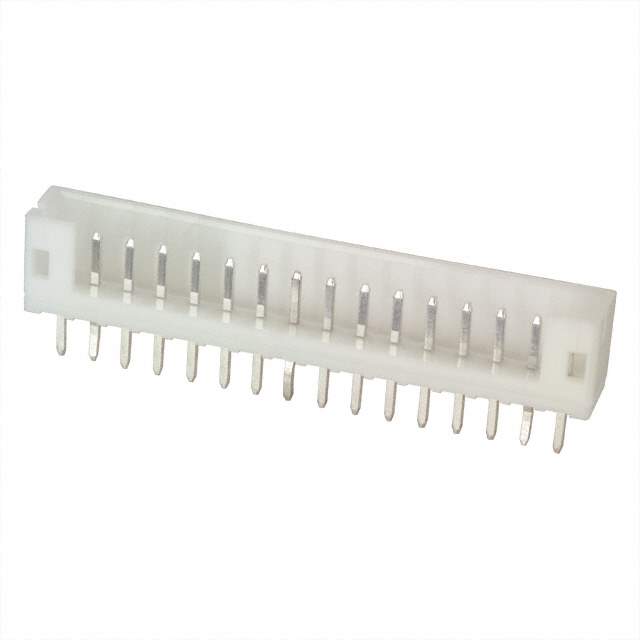

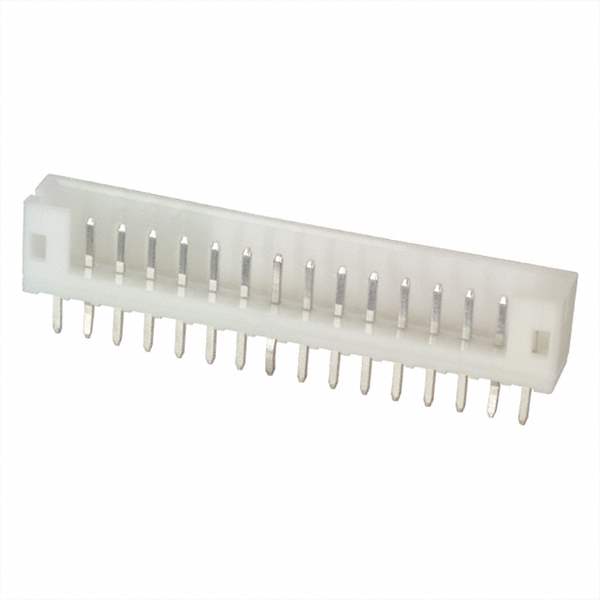

B16B-PH-K-S(LF)(SN)

Name: B16B-PH-K-S(LF)(SN)
Brand: JST Sales America Inc.
SKU: 758502
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B16B-PH-K-S(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 16POS 2MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	JST Sales America Inc.
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	16
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Style	Through Hole
Termination	Press-Fit, Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.130" (3.30mm)
Contact Length - Post	0.134" (3.40mm)
Overall Contact Length	0.333" (8.45mm)
Insulation Height	0.236" (6.00mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	2A
Voltage Rating	100V
Mated Stacking Heights	8mm
Manufacturer Pack Quantity	250
MSL Level	1 (Unlimited)
Win Source Part Number	758502-B16B-PH-K-S(LF)(SN)
Popularity	Low
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian B16B-PH-K-S(LF)(SN) CAD Model

Alternative Products

Description

The JST Sales America Inc. 758502-B16B-PH-K-S(LF)(SN) is a through hole connector with 16 positions and a detent lock fastening type. It has a male pin contact type and all positions loaded.

Voltage Rating: 100V
Current Rating: 2A
Style: Designed for board to cable/wire style
Pitch-Mating: 0.079" (2.00mm)
Contact Finish-Mating and Post: Tin
Supply and Demand Status: currently in balance supply and demand status
