Same model may have multiple batches, images only for reference.

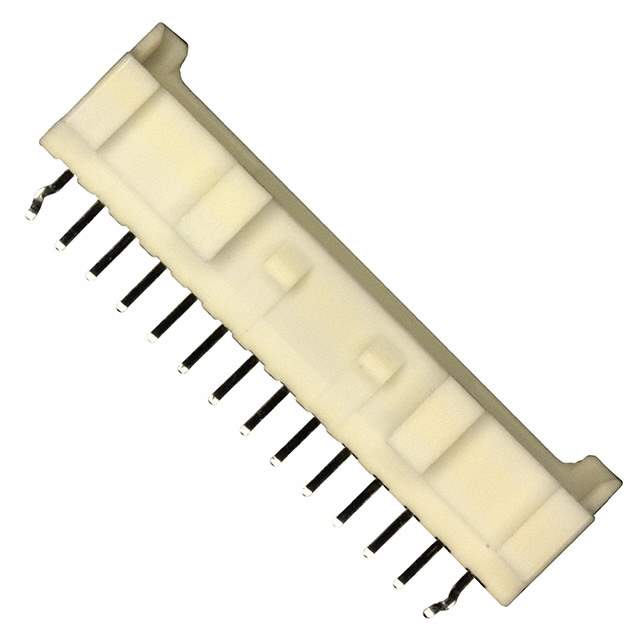

B14B-PASK(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B14B-PASK(LF)(SN)

Part No B14B-PASK(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 14POS 2MM / Connector Header Through Hole 14 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PA
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 14
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.126" (3.20mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.319" (8.10mm)
Insulation Height 0.303" (7.70mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 9.9mm, 14.7mm, 14.9mm
Base Product Number B14B-PAS
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 455-1829
Standard Package 250
Win Source Part Number 973193-B14B-PASK(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B14B-PASK(LF)(SN) CAD Model

Description

The JST Sales America Inc. 973193-B14B-PASK(LF)(SN) connector is a male pin header with 14 positions and a pitch of 2.00mm.

  • Temperature Range: The component is designed for use in electronic devices with an operating temperature range of -25°C to 85°C.
  • Mounting: It is mounted through a hole
  • Fastening: and has a locking ramp for fastening.
  • Series: The component is part of the PA series
  • Category: and is classified under the Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins category.
  • MSL Level: The MSL level is 1 (unlimited)
  • Current Rating: and the current rating (amps) is 3A.
  • HTSUS Code: The HTSUS code is 8536.69.4040
  • Manufacturer Part Number: and the manufacturer part number is 973193-B14B-PASK(LF)(SN).
  • Other Names: It is also known by other names 455-1829 and base product number B14B-PAS.
