Same model may have multiple batches, images only for reference.

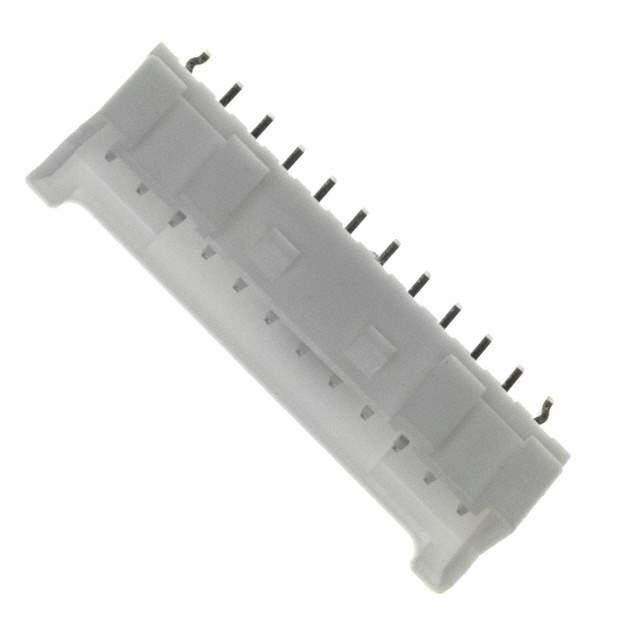

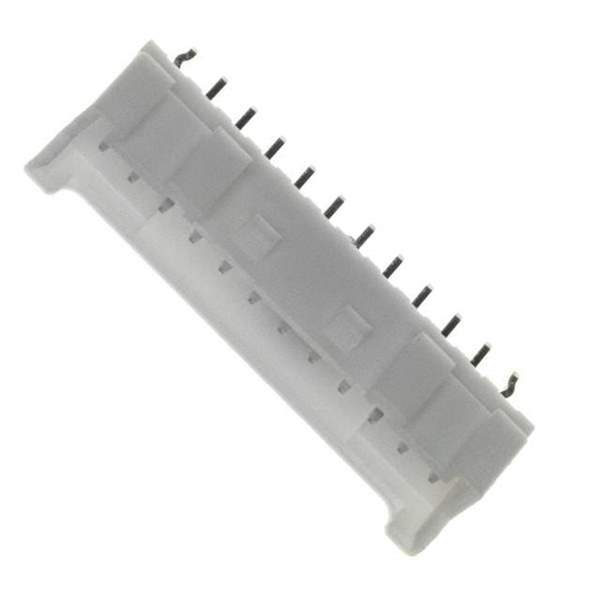

B12B-PASK(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B12B-PASK(LF)(SN)

Part No B12B-PASK(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 12POS 2MM / Connector Header Through Hole 12 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PA
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 12
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.126" (3.20mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.319" (8.10mm)
Insulation Height 0.303" (7.70mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 9.9mm, 14.7mm, 14.9mm
Base Product Number B12B-PAS
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 455-1827
Standard Package 250
Win Source Part Number 1007167-B12B-PASK(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B12B-PASK(LF)(SN) CAD Model

Description

The B12B-PASK(LF)(SN) is a male pin header connector electronic component manufactured by JST Sales America Inc.

  • Popularity: The product has a medium popularity
  • Supply and Demand Status: and a sufficient supply and demand status.
  • Win Source Part Number: The Win Source Part Number for this product is 1007167-B12B-PASK(LF)(SN).
  • Current Rating: The product has a current rating of 3A
  • Temperature Range: and a temperature range of -25°C to 85°C.
  • Style: The product is designed for board to cable/wire style.
