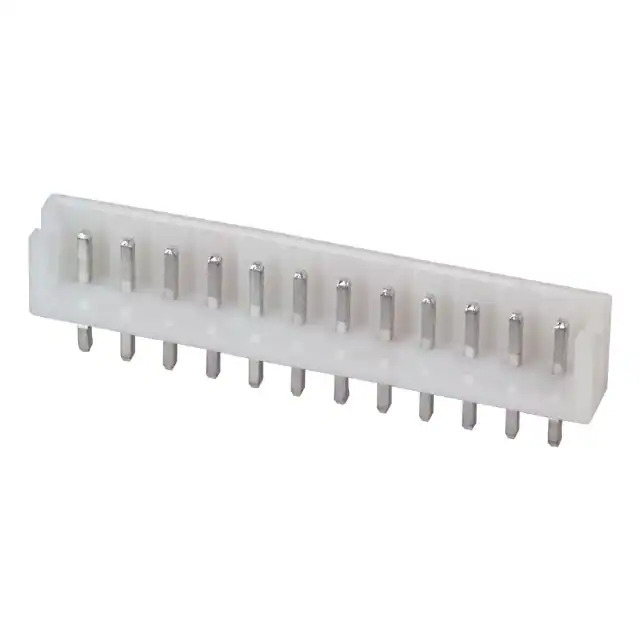

B12B-EH-A(LF)(SN) JST Sales America Inc.
Same model may have multiple batches, images only for reference.

B12B-EH-A(LF)(SN)

Part No B12B-EH-A(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 12POS 2.5MM / Connector Header Through Hole 12 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series EH
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 12
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Friction Lock
Contact Length - Mating 0.130" (3.30mm)
Contact Length - Post 0.126" (3.20mm)
Overall Contact Length -
Insulation Height 0.236" (6.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Features -
Temperature Range - Operating -25°C ~ 85°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 8.1mm
Contact Finish Thickness - Post -
Applications -
Base Product Number B12B-EH
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362482-B12B-EH-A(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B12B-EH-A(LF)(SN) CAD Model

Description

The B12B-EH-A(LF)(SN) is a male pin header connector from JST Sales America Inc.

  • Mounting Type: Through-Hole
  • Contact Gender: Male Pin
  • Contacts: 12
  • Fastening Type: Friction Lock
  • Pitch: 0.098" (2.50mm)
  • Application: Board to Cable/Wire
  • Current Rating: 3A
  • Temperature Range: -25°C to 85°C
  • Series: EH
  • Packaging: Bulk
