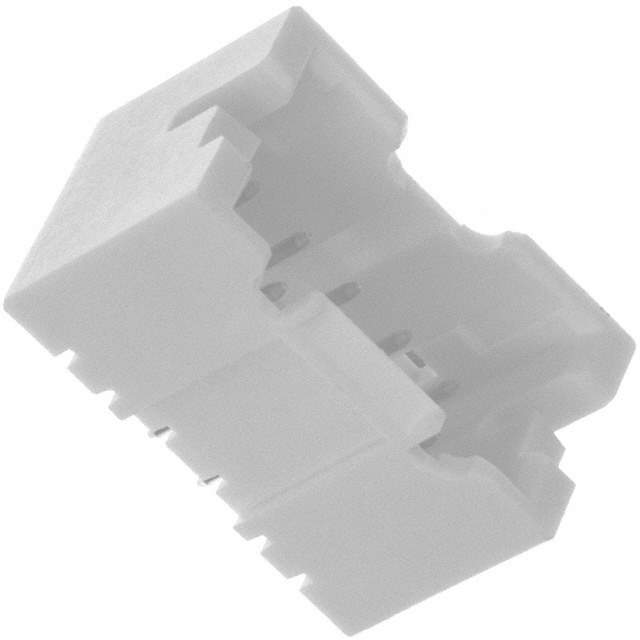

B10B-XADSS-N(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B10B-XADSS-N(LF)(SN)

Part No B10B-XADSS-N(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS 2.5MM / Connector Header Through Hole 10 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series XAD
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.098" (2.50mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.138" (3.50mm)
Insulation Height 0.398" (10.11mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 13.8mm
Base Product Number B10B-XAD
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 455-2002,B10BXADSSNLFSN
Standard Package 200
Win Source Part Number 965175-B10B-XADSS-N(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B10B-XADSS-N(LF)(SN) CAD Model

Description

The XAD series 10-position male pin header connector is a type of rectangular connector that is suitable for board to cable/wire applications.

  • Series: XAD
  • Number of Positions: 10
  • Application: Board to Cable/Wire
  • Fastening Type: Locking Ramp
  • Contact Material: Copper Alloy
  • Voltage Rating: 250V
  • Shrouding: 4 Walls
  • Pitch: 0.098 inches (2.50mm)
  • Contact Finish (Mating and Post): Tin
  • Mounting Type: Through-Hole
  • Temperature Range: -25°C to 85°C
  • Insulation Material Rating: UL94 V-0
