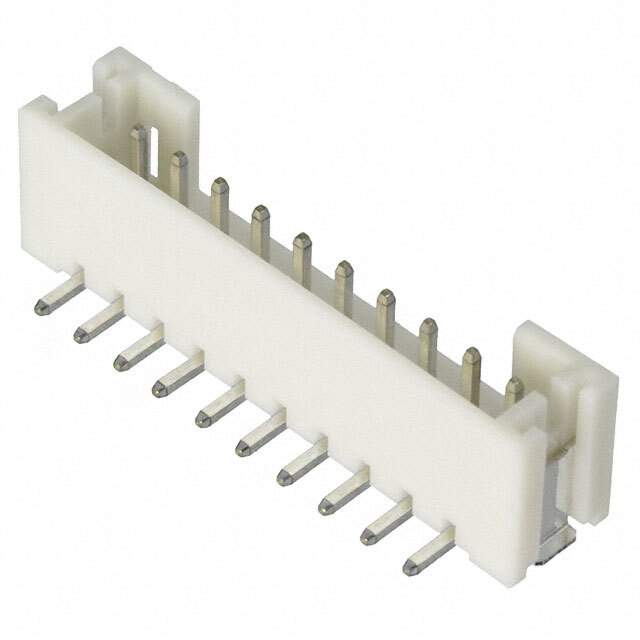

B10B-PH-SM4-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B10B-PH-SM4-TB(LF)(SN)

Part No B10B-PH-SM4-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER PH TOP 10POS 2MM SMD
Datasheet
B10B-PH-SM4-TB(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 10
Number of Positions Loaded All
Number of Rows 1
Mounting SMD (SMT)
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Insulation Height 0.260" (6.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA6T), Nylon 6T
Features Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 2A
Voltage Rating 100V
Mated Stacking Heights 8.6mm
Win Source Part Number 1021325-B10B-PH-SM4-TB(LF)(SN)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B10B-PH-SM4-TB(LF)(SN) CAD Model

Description

The JST Sales America Inc. 1021325-B10B-PH-SM4-TB(LF)(SN) header connector is a male pin type connector with a pitch of 0.079 inches (2.00mm) and a voltage rating of 100V.

  • Fastening Type: detent lock
  • Termination: solder
  • Shrouded: with 4 walls
  • Current Rating: 2A
  • Mated Stacking Height: 8.6mm
  • Insulation Material: polyamide (PA6T) and nylon 6T
  • Contact Material: copper alloy
  • Application: board to cable/wire
  • Material Flammability Rating: UL94 V-0
  • Popularity: medium
  • Availability: widely used
