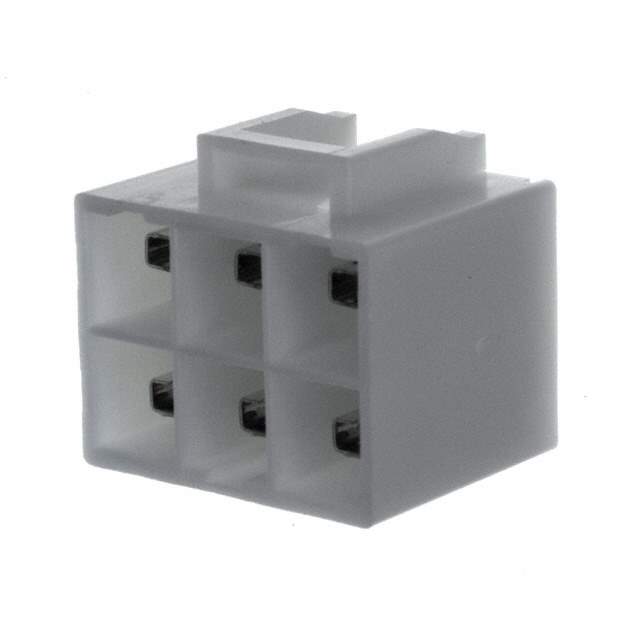

Same model may have multiple batches, images only for reference.

B06P-VL

Name: B06P-VL
Brand: JST Sales America Inc.
SKU: 67086
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B06P-VL
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER 6POS VL SERIES TIN
Datasheet	B06P-VL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	JST Sales America Inc.
Packaging	Bulk
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.244" (6.20mm)
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.326" (8.28mm)
Mounting	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Post	0.142" (3.60mm)
Insulation Height	0.646" (16.40mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Insulation Material	Polyamide (PA66), Nylon 6/6
Temperature Range - Operating	-25°C to 90°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating	20A
Voltage Rating	600V
Mated Stacking Heights	29.2mm
Win Source Part Number	079357-B06P-VL
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian B06P-VL CAD Model

Alternative Products

Description

Product Description

The B06P-VL offers a reliable solution designed for high-operation environments, providing consistent and dependable performance. It's engineered to withstand rigorous conditions while maintaining optimal functionality.

Features and Benefits:

Increased resistance to mechanical stress
Seamless integration with existing electronic configurations
Proven track record of longevity and reliability

Applications:

Medical devices
Automotive sensor systems
Energy-efficient lighting solutions
