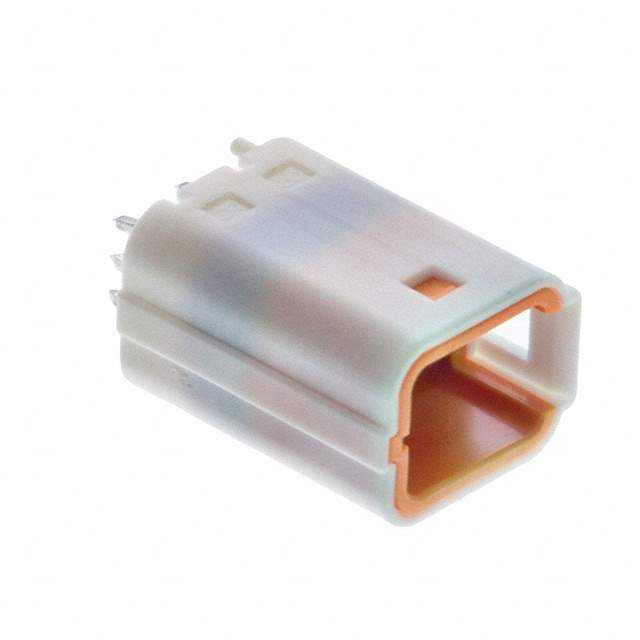

B06B-JWPF-SK-R(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B06B-JWPF-SK-R(LF)(SN)

Part No B06B-JWPF-SK-R(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Circular Connectors - Housings
Description CONN HEADER VERT 6POS 2MM / Connector Header Through Hole 6 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series JWPF
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 6
Number of Rows 2
Row Spacing - Mating 0.157" (4.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Latch Holder
Contact Length - Post 0.130" (3.30mm)
Insulation Height 0.654" (16.61mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Board Guide
Temperature Range - Operating -55°C ~ 85°C
Ingress Protection Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 100V
Mated Stacking Heights 21mm
Base Product Number B06B-JWP
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names B06B-JWPF-SK-R(LF)(SN)-B,B06B-JWPF-SK-R-B(LF)(SN),B06B-JWPF-SK-R-BLFSN,455-3330
Standard Package 330
Win Source Part Number 1232082-B06B-JWPF-SK-R(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B06B-JWPF-SK-R(LF)(SN) CAD Model

Description

The JWPF series header connectors are designed for board-to-wire connections.

  • Connection Type: Board-to-Wire
  • Rows: 2
  • Positions Loaded: 6
  • Pin Gender: Male
  • Material: Glass-filled Polybutylene Terephthalate (PBT)
  • Insulation Color: Natural
  • Contact Material: Copper Alloy
  • Contact Finish: Tin
  • Termination Type: Kinked Pin, Solder
  • Voltage Rating: 100V
  • Current Rating: 3A
  • Features: Dust-Tight, Waterproof
  • Flammability Rating: UL94 V-0
  • Mated Stacking Height: 21mm
  • Row Spacing: 0.157" (4.00mm)
  • Type: Shrouded-4 Wall
  • Fastening Type: Latch Holder
  • Package: Bulk
  • Quantity: 330 pieces
