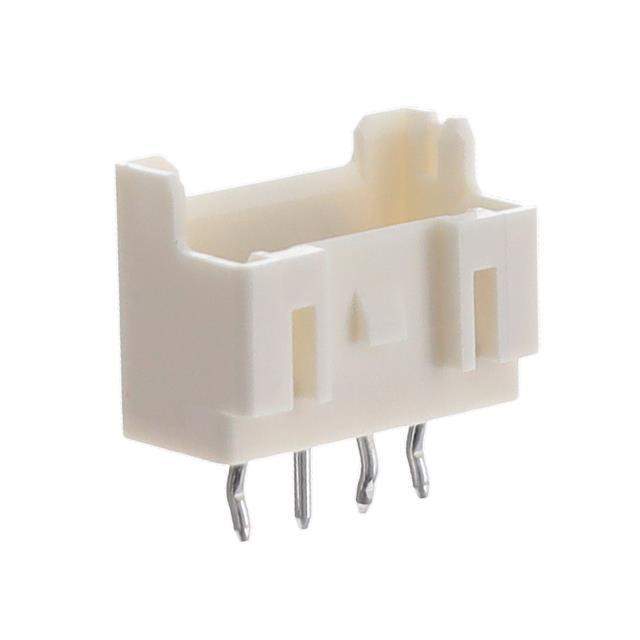

Same model may have multiple batches, images only for reference.

B04B-XASK-1N(LF)(SN)

Name: B04B-XASK-1N(LF)(SN)
Brand: JST Sales America Inc.
SKU: 1047283
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B04B-XASK-1N(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 4POS 2.5MM / Connector Header Through Hole 4 position 0.098" (2.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	XA
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Press-Fit, Solder
Fastening Type	Locking Ramp
Contact Length - Post	0.134" (3.40mm)
Insulation Height	0.346" (8.80mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Voltage Rating	250V
Base Product Number	B04B-XAS
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	400
Win Source Part Number	1047283-B04B-XASK-1N(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian B04B-XASK-1N(LF)(SN) CAD Model

Alternative Products

Description

The B04B-XASK-1N(LF)(SN) is a connector manufactured by JST Sales America Inc.

Series: XA
Positions: 4
Connector Type: header
Contact Type: male pin
Positions Loaded: All
Row Count: single
Termination: press-fit and solder
Fastening Type: locking ramp
Voltage Rating: 250V
Package: bulk
Insulation Material: polyamide (PA66), nylon 6/6, glass-filled
Insulation Color: natural
Material Flammability Rating: UL94 V-0
Pitch-Mating: 0.098" (2.50mm)
Contact Finish-Mating: tin
Temperature Range: -25°C to 85°C
Current Rating: 3A
