80P-JMDSS-G-1-TF(LF)(SN) JST Sales America Inc.
Same model may have multiple batches, images only for reference.

80P-JMDSS-G-1-TF(LF)(SN)

Part No 80P-JMDSS-G-1-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors

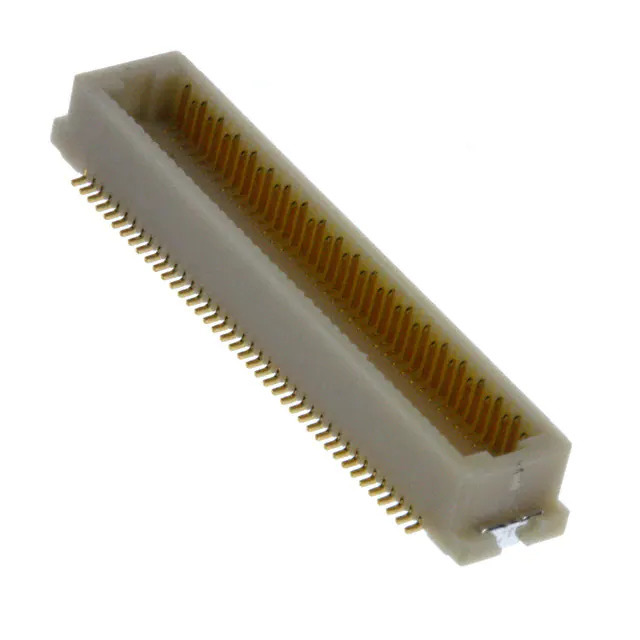

Description CONN PLUG 80POS SMD GOLD / 80 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr JST Sales America Inc.
Series JMD
Package Tape & Reel
Product Status Active
Connector Type Plug, Outer Shroud Contacts
Number of Positions 80
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness -
Mated Stacking Heights 4.5mm
Height Above Board -
Base Product Number 80P-JMDS
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364541-80P-JMDSS-G-1-TF(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian 80P-JMDSS-G-1-TF(LF)(SN) CAD Model

Description

The 1364541-80P-JMDSS-G-1-TF(LF)(SN) is a plug connector from JST Sales America Inc.

  • Series: JMD
  • Mounting: Surface Mount
  • Contacts: 80 Gold contacts in a plug configuration with outer shroud contacts
  • Pitch: 0.020" (0.50mm)
  • Mated Stacking Heights: 4.5mm
  • Solder Retention: Yes
  • Packaging: Tape and Reel
  • Temperature Range: -25°C to 85°C
  • Product Status: Active
