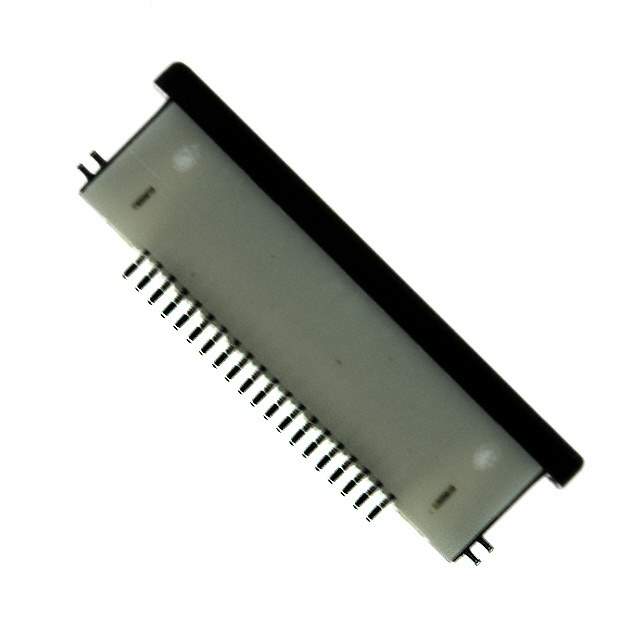

20FLZ-RSM2-TB(LF)(SN)

Name: 20FLZ-RSM2-TB(LF)(SN)
Brand: JST Sales America Inc.
SKU: 813339
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	20FLZ-RSM2-TB(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC BOTTOM 20POS 0.50MM R/A
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	JST Sales America Inc.
Packaging	Reel
Flat Flex Type	FFC, FPC
Mounting Style	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	20
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.079" (2.00mm)
Locking Feature	Slide Lock
Cable End Type	Tapered
Contact Material	Phosphor Bronze
Contact Finish	Tin
Housing Material	Polyamide (PA6T), Nylon 6T
Actuator Material	Polyamide (PA6T), Nylon 6T
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Housing Color	Natural
Actuator Color	Black
Manufacturer Pack Quantity	2,800
MSL Level	1 (Unlimited)
Popularity	Low
Supply and Demand Status	Limited
Win Source Part Number	813342-20FLZ-RSM2-TB(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian 20FLZ-RSM2-TB(LF)(SN) CAD Model

Alternative Products

Description

The JST Sales America Inc. 813342-20FLZ-RSM2-TB(LF)(SN) connector is a contacts, bottom connector with 20 positions and a pitch of 0.020" (0.50mm).

Mounting Style: Surface mount, right-angle
Features: Solder retention, zero insertion force (ZIF)
Material: Phosphor bronze
Voltage Rating: 50V
Locking Feature: Slide lock
Cable End Type: Tapered
Supply and Demand Status: Limited
Manufacturer Pack Quantity: 2,800
MSL Level: 1 (unlimited)
Current Rating: 0.5A
