Same model may have multiple batches, images only for reference.

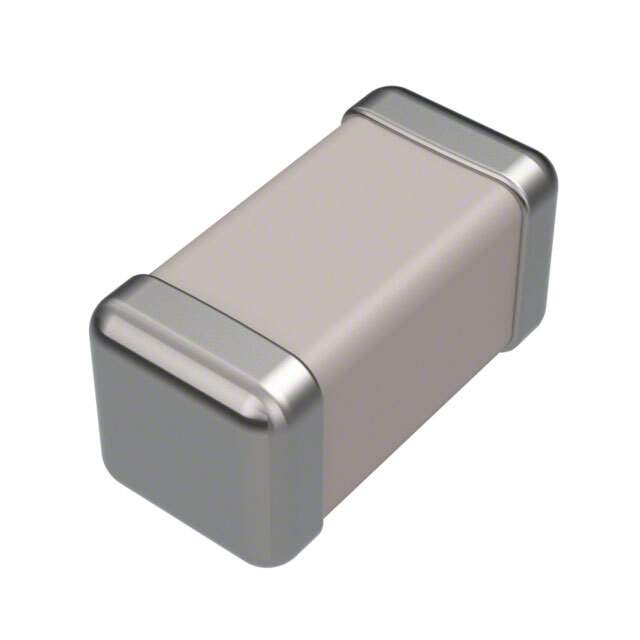

QCCP501Q220J1GV001T Real Image
Same model may have multiple batches, images only for reference.

QCCP501Q220J1GV001T

Part No QCCP501Q220J1GV001T
Manufacturer Johanson Technology Inc.
Catalog Ceramic Capacitors
Description HIGH-Q MLC CAPACITOR, C-SERIES, / 22 pF ±5% 500V Ceramic Capacitor C0G, NP0 0603 (1608 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr Johanson Technology Inc.
Series C
Package Tape & Reel (TR) Cut Tape (CT)
Capacitance 22 pF
Tolerance ±5%
Voltage - Rated 500V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 150°C
Features High Q, Low Loss
Applications RF, Microwave, High Frequency
Mounting Type Surface Mount, MLCC
Package / Case 0603 (1608 Metric)
Size / Dimension 0.062" L x 0.032" W (1.57mm x 0.81mm)
Thickness (Max) 0.035" (0.89mm)
Base Product Number QCCP501Q
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1338747-QCCP501Q220J1GV001T
Ultra Librarian 3D Model Ultra Librarian QCCP501Q220J1GV001T CAD Model

Description

The Johanson Technology Inc. 1338747-QCCP501Q220J1GV001T is a surface mount ceramic capacitor that has a capacitance of 22 pF and a tolerance of ±5%. This component is rated @ 500V and operates @ a temperature range of -55°C ~ 150°C.

  • Capacitance: 22 pF
  • Tolerance: ±5%
  • Voltage Rating: 500V
  • Temperature Range: -55°C ~ 150°C
  • Dimension: 0.062" L x 0.032" W (1.57mm x 0.81mm)
  • Package/Case: 0603 (1608 Metric)
  • Packaging: Reel, 4,000 pcs
  • Popularity: Medium
