Same model may have multiple batches, images only for reference.

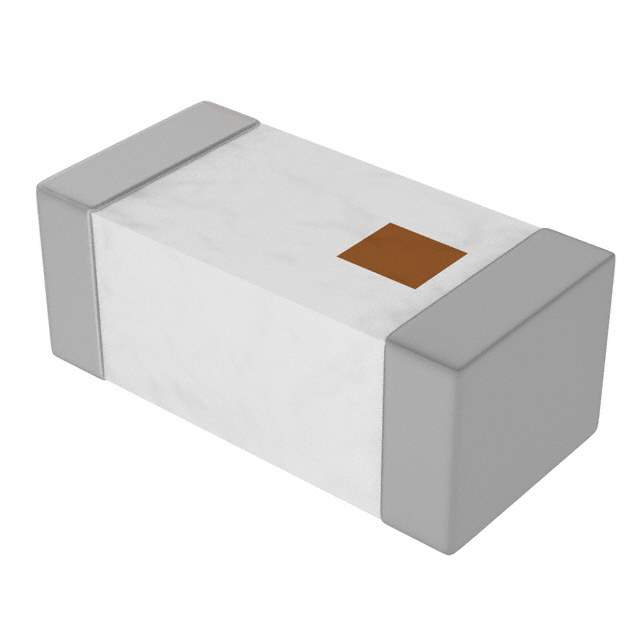

2450AT18B100E Real Image
Same model may have multiple batches, images only for reference.

2450AT18B100E

Part No 2450AT18B100E
Manufacturer Johanson Technology Inc.
Catalog RF Antennas
Description ANTENNA CHIP 2.4GHZ
Datasheet
2450AT18B100E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Johanson Technology Inc.
Packaging Reel - TR
Status Active
Frequency Group UHF (2 GHz to 3 GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.4GHz to 2.5GHz
Antenna Type Chip
Number of Bands 1
Return Loss -9.5dB
Gain 0.5dBi
Maximum Power Dissipation 2W
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.051" (1.30mm)
Win Source Part Number 052372-2450AT18B100E
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name 2450AT18B100
Introduction Date June 12, 2006
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2022
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian 2450AT18B100E CAD Model

Description

Product Overview: 2450AT18B100E

The 2450AT18B100E electronic component provides remarkable versatility for projects requiring superior functionality and dependability.

Applications:

  • High-frequency transceivers
  • Automated industrial systems
  • Satellite communication
  • Advanced computing platforms

Features and Benefits:

  • High frequency support
  • Excellent electromagnetic compatibility
  • Sturdy construction for harsh conditions
  • Minimal signal loss

Engineers looking to enhance high-frequency signal handling with resilient components will find the 2450AT18B100E to be an indispensable addition to their projects.
