Same model may have multiple batches, images only for reference.

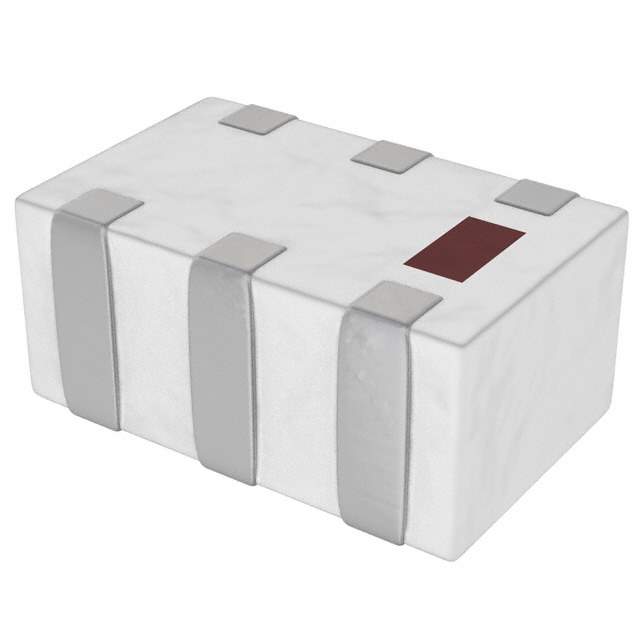

1850BL15B0050001E Real Image
Same model may have multiple batches, images only for reference.

1850BL15B0050001E

Part No 1850BL15B0050001E
Manufacturer Johanson Technology Inc.
Catalog Balun
Description BALUN 1.7GHZ-2GHZ 50/50 0805 / RF Balun 1.7GHz ~ 2GHz 50 / 50Ohm 0805 (2012 Metric)
Datasheet
1850BL15B0050001E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless>Balun
Mfr Johanson Technology Inc.
Series 1850
Package Tape & Reel
Frequency Range 1.7GHz ~ 2GHz
Impedance - Unbalanced/Balanced 50 / 50Ohm
Phase Difference 180° ±10°
Insertion Loss (Max) 1.0dB
Return Loss (Min) 9.5dB
Package / Case 0805 (2012 Metric)
Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4035
Standard Package 4,000 pcs
Win Source Part Number 1380593-1850BL15B0050001E
Ultra Librarian 3D Model Ultra Librarian 1850BL15B0050001E CAD Model

Description

The 1850 series balun is a high-performance component designed for RF and wireless applications.

  • Frequency Range: 1.7GHz to 2GHz
  • Balanced/Unbalanced Impedance: 50/50 Ohm
  • Phase Difference: 180° ±10°
  • Maximum Insertion Loss: 1.0dB
  • Minimum Return Loss: 9.5dB
  • Mounting Type: Surface Mount
  • Package: 0805 (2012 Metric)
  • AEC-Q200: Compliant
  • Moisture Sensitivity Level: 1 (unlimited)
