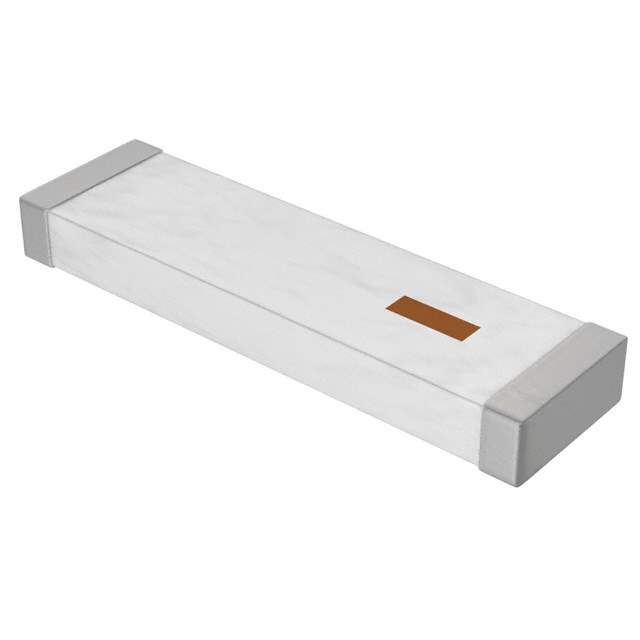

1575AT43A0040E Real Image
Same model may have multiple batches, images only for reference.

1575AT43A0040E

Part No 1575AT43A0040E
Manufacturer Johanson Technology Inc.
Catalog RF Antennas
Description RF ANT 1.561GHZ/1.575GHZ CHIP / 1.561GHz, 1.575GHz, 1.602GHz Beidou, GLONASS, GPS Chip RF Antenna 1.561GHz ~ 1.602GHz 0.5dBi, 1dBi Solder Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Johanson Technology Inc.
Package Tape & Reel
RF Family/Standard Navigation
Frequency Group UHF (1GHz ~ 2GHz)
Frequency (Center/Band) 1.561GHz, 1.575GHz, 1.602GHz
Frequency Range 1.561GHz ~ 1.602GHz
Antenna Type Chip
Number of Bands 3
Return Loss -9.5dB
Gain 0.5dBi, 1dBi
Power - Max 3 W
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.031" (0.80mm)
Applications Beidou, GLONASS, GPS
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 7A994
HTSUS 8529.10.4040
Other Names 1575AT43A40E,712-1003-2,1575AT43A40,712-1003-1,712-1003-6
Standard Package 1,000
Win Source Part Number 1124618-1575AT43A0040E
Ultra Librarian 3D Model Ultra Librarian 1575AT43A0040E CAD Model

Description

The 1575AT43A0040E is an RF antenna chip manufactured by Johanson Technology Inc.

  • Application: Navigation systems (Beidou, GLONASS, GPS)
  • Performance: High gain and VSWR characteristics
