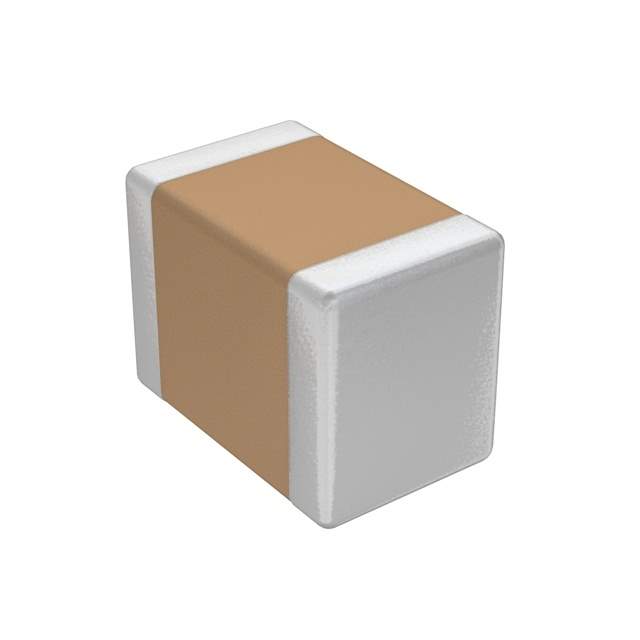

501R15W103KV4E Real Image
Same model may have multiple batches, images only for reference.

501R15W103KV4E

Part No 501R15W103KV4E
Manufacturer Johanson Dielectrics Inc.
Catalog Ceramic Capacitors
Description CAP CER 10000PF 500V X7R 0805 / 10000 pF ±10% 500V Ceramic Capacitor X7R 0805 (2012 Metric)
Datasheet
501R15W103KV4E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Johanson Dielectrics Inc.
Package Tape & Reel
Capacitance 10000 pF
Tolerance ±10%
Voltage - Rated 500V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 0805 (2012 Metric)
Dimension 0.080" L x 0.050" W (2.03mm x 1.27mm)
Thickness (Max) 0.055" (1.40mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Names 709-1021-2,709-1021-6,Q3846079,709-1021-1
Standard Package 3,000
Win Source Part Number 1038956-501R15W103KV4E
Ultra Librarian 3D Model Ultra Librarian 501R15W103KV4E CAD Model

Description

The Johanson Dielectrics Inc. 1038956-501R15W103KV4E is a ceramic capacitor suitable for general purpose applications.

  • Capacitance: 10000 pF
  • Voltage Rating: 500V
  • Mounting Type: Surface Mount, MLCC
  • Package/Case: 0805 (2012 Metric)
  • Tolerance: ±10%
  • Temperature Coefficient: X7R
  • Thickness: 0.055" (1.40mm)
  • Dimension: 0.080" L x 0.050" W (2.03mm x 1.27mm)
  • Alternative Parts: C0805V103KCRACTU, C0805W103KCRACTU, CC0805KKX7RBBB103, C0805C103K5RACTU, 08051C103KAT2A, and 08052C103KAT2A
  • EAR99 Compliant: Yes
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8532.24.0020
