Same model may have multiple batches, images only for reference.

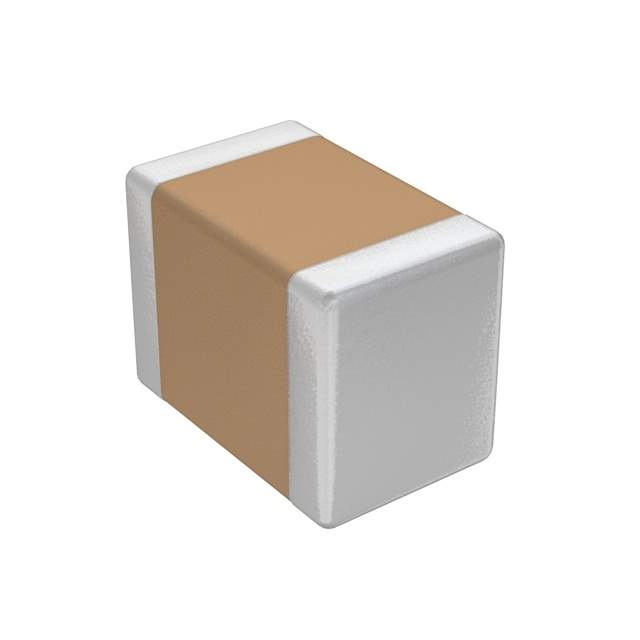

500R15N220JV4T Real Image
Same model may have multiple batches, images only for reference.

500R15N220JV4T

Part No 500R15N220JV4T
Manufacturer Johanson Dielectrics Inc.
Catalog Ceramic Capacitors
Description CAP CER 22PF 50V C0G/NP0 0805 / 22 pF ±5% 50V Ceramic Capacitor C0G, NP0 0805 (2012 Metric)
Datasheet
500R15N220JV4T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Johanson Dielectrics Inc.
Package Tape & Reel
Capacitance 22 pF
Tolerance ±5%
Voltage - Rated 50V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 0805 (2012 Metric)
Dimension 0.080" L x 0.050" W (2.03mm x 1.27mm)
Thickness (Max) 0.050" (1.27mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Names 709-1172-6,709-1172-2,709-1172-1
Standard Package 4,000
Win Source Part Number 1133051-500R15N220JV4T
Ultra Librarian 3D Model Ultra Librarian 500R15N220JV4T CAD Model

Description

The 1133051-500R15N220JV4T is a ceramic capacitor that has a capacitance of 22 pF and ±5% tolerance from Johanson Dielectrics Inc.

  • Capacitance: 22 pF
  • Tolerance: ±5%
  • Package: Surface mount MLCC
  • Size: 0805 (2012 Metric)
  • Operating Temperature: -55°C to 125°C
  • Package Type: Tape & Reel
  • RoHS Compliant: Yes
  • Standard Package: 4000
  • Estimated Production Lead Time: 13 weeks
  • REACH: Unaffected
  • ECCN: EAR99
