Same model may have multiple batches, images only for reference.

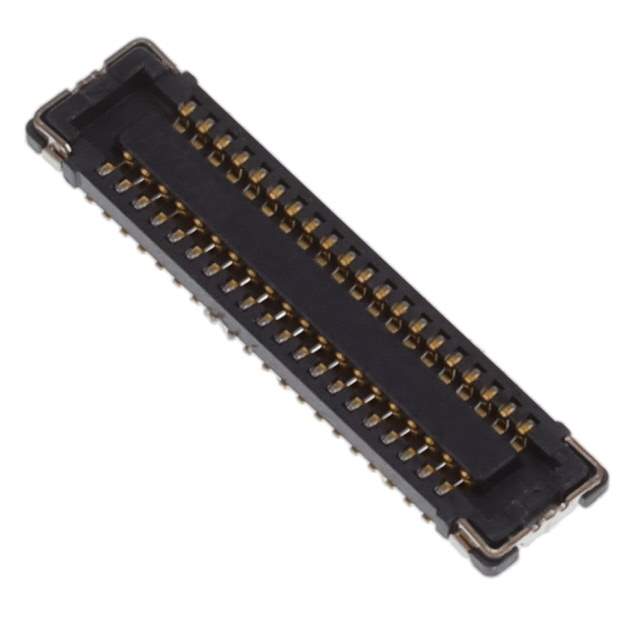

WP7B-S040VA1-R8000

Name: WP7B-S040VA1-R8000
Brand: JAE Electronics
SKU: 1104724
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	WP7B-S040VA1-R8000
Manufacturer	JAE Electronics
Catalog	Rectangular Connectors
Description	CONN RCPT 40POS SMD GOLD / 40 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	JAE Electronics
Series	WP7
Package	Tape & Reel
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	40
Pitch	0.016" (0.40mm)
Number of Rows	2
Mounting	SMD (SMT)
Features	Solder Retention
Contact Finish	Gold
Contact Finish Thickness	4.00µin (0.100µm)
Mated Stacking Heights	0.7mm
Height Above Board	0.028" (0.71mm)
Base Product Number	WP7B-S04
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	670-3055-6,670-3055-2,WP7B-S040VA1-R8000-ND,670-3055-1
Standard Package	8,000
Win Source Part Number	1104724-WP7B-S040VA1-R8000
Ultra Librarian 3D Model	Ultra Librarian WP7B-S040VA1-R8000 CAD Model

Description

The JAE Electronics WP7B-S040VA1-R8000 is a rectangular connector array with a center strip receptacle and 40 positions.

Type: rectangular connector array with a center strip receptacle
Positions: 40
Features: solder retention
Rows: 2
Pitch: 0.016 inches (0.40mm)
Connector Finish: gold
Finish Thickness: 4.00µin (0.100µm)
Package: tape and reel
Standard Package: 8,000
Mounting Type: SMD (SMT)
Mated Stacking Heights: 0.7mm
ECCN: EAR99
MSL Level: 1 (Unlimited)
