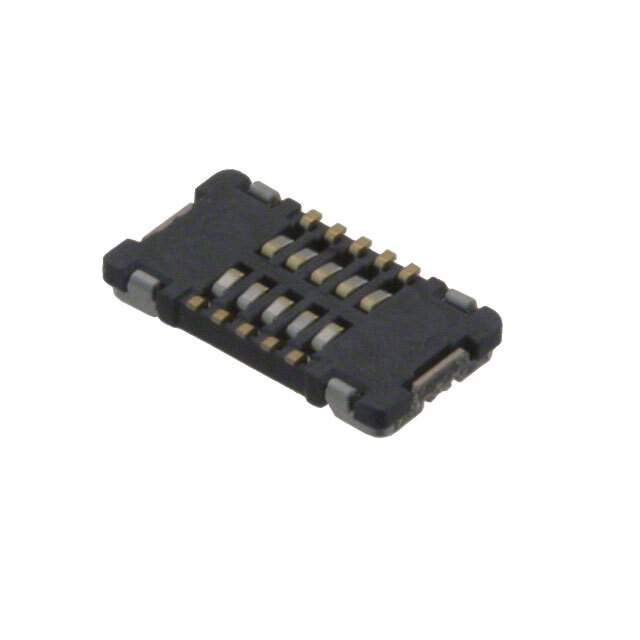

WP7A-S010VA1-R8000 Real Image
Same model may have multiple batches, images only for reference.

WP7A-S010VA1-R8000

Part No WP7A-S010VA1-R8000
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN RCPT 10POS SMD GOLD / 10 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr JAE Electronics
Series WP7
Package Tape & Reel
Connector Type Receptacle, Center Strip Contacts
Number of Positions 10
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 0.7mm
Height Above Board 0.028" (0.71mm)
Base Product Number WP7A-S01
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 670-3043-6,670-3043-1,670-3043-2,WP7A-S010VA1-R8000-ND
Standard Package 8,000
Win Source Part Number 975918-WP7A-S010VA1-R8000
Ultra Librarian 3D Model Ultra Librarian WP7A-S010VA1-R8000 CAD Model

Description

The WP7A-S010VA1-R8000 is a rectangular connector that is designed for use in various electronic applications.

  • Series: WP7
  • Positions: 10
  • Pitch: 0.016 inches (0.40mm)
  • Features: Solder Retention
  • Connector Type: Receptacle, Center Strip Contacts
  • Height Above Board: 0.028 inches (0.71mm)
  • Contact Finish: Gold with a thickness of 4.00 microinches (0.100 micrometers)
  • Supplied: Tape and Reel
  • Standard Package: 8,000 units
  • Manufacturer: JAE Electronics
