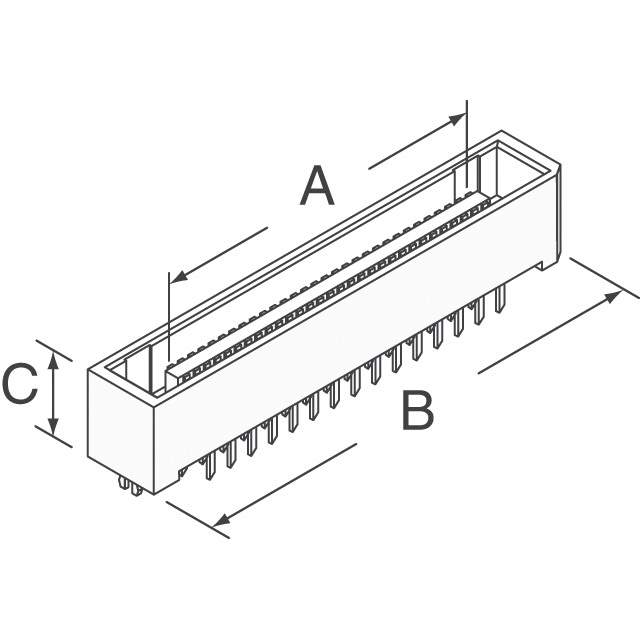

TX25-60P-6ST-H1E

Name: TX25-60P-6ST-H1E
Brand: JAE Electronics
SKU: 1009273
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	TX25-60P-6ST-H1E
Manufacturer	JAE Electronics
Catalog	Rectangular Connectors
Description	CONN PLUG 60POS VERT GOLD / 60 Position Connector Plug, Center Strip Contacts Through Hole Gold
Datasheet	TX25-60P-6ST-H1E Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	JAE Electronics
Series	TX25
Package	Tray
Connector Type	Plug, Center Strip Contacts
Number of Positions	60
Pitch	0.050" (1.27mm)
Number of Rows	2
Mounting Type	Through Hole
Features	Board Lock
Contact Finish	Gold
Contact Finish Thickness	4.00µin (0.100µm)
Mated Stacking Heights	12mm, 16mm, 18mm
Height Above Board	0.362" (9.20mm)
Base Product Number	TX25-60P
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	670-1460
Standard Package	528
Win Source Part Number	1009273-TX25-60P-6ST-H1E
Ultra Librarian 3D Model	Ultra Librarian TX25-60P-6ST-H1E CAD Model

Description

The JAE Electronics 1009273-TX25-60P-6ST-H1E is a through-hole connector with a pitch of 0.050 inches.

Mounting Type: Through-Hole
Pitch: 0.050 inches
Positions: 60
Rows: 2
Connector Type: Plug, Center Strip Contacts
Board Lock: Yes
Contact Finish: Gold
Contact Finish Thickness: 4.00 microns
Package: Tray
Height Above Board: 0.362 inches
MSL Level: 1
ECCN: EAR99
