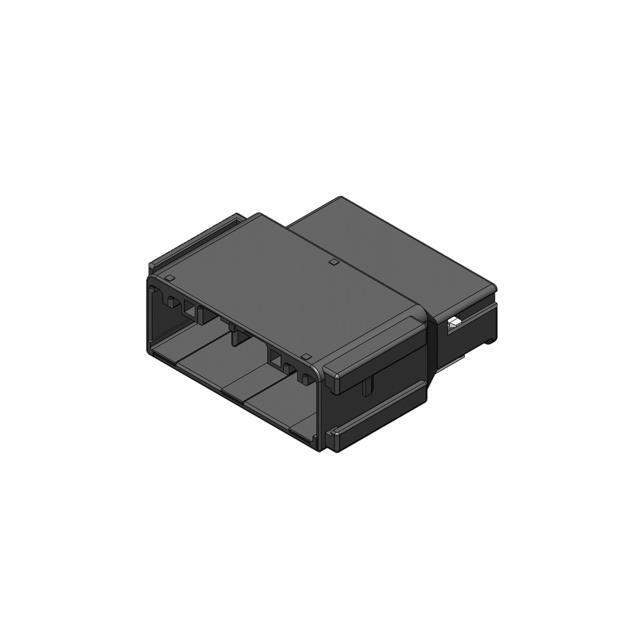

MX84B024PF1 Real Image
Same model may have multiple batches, images only for reference.

MX84B024PF1

Part No MX84B024PF1
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN PLUG HSG 24POS 2.20MM / 24 Rectangular Connectors - Housings Plug Black 0.087" (2.20mm)
Datasheet
MX84B024PF1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr JAE Electronics
Series MX84B
Package Tray
Connector Type Plug
Contact Type Male Pin
Number of Positions 24
Pitch 0.087" (2.20mm)
Number of Rows 2
Row Spacing 0.118" (3.00mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Holder
Color Black
Features Retainer
Note Contacts Not Included
Base Product Number MX84B
Standard Package 360
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1349250-MX84B024PF1
Ultra Librarian 3D Model Ultra Librarian MX84B024PF1 CAD Model

Description

The JAE Electronics MX84B024PF1 is a rectangular connector housing with 24 positions and a pitch of 0.087" (2.20mm).

  • Positions: 24
  • Pitch: 0.087" (2.20mm)
  • Color: Black
  • Retainer: Yes
  • Connector Type: Plug
  • Contact Type: Male Pin
  • Rows: 2
  • Row Spacing: 0.118" (3.00mm)
  • Packaging: Tray
  • Standard Package: 360
  • Mounting Type: Free Hanging (In-Line)
  • Temperature Range: Not Specified
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.8000
