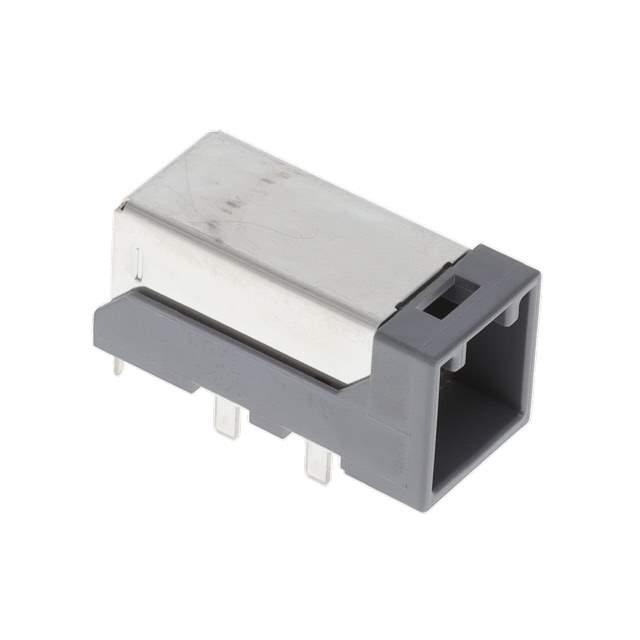

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 13 Weeks
Features Connector Header Through Hole, Right Angle 4 position 0.079" (2.00mm)
Manufacturer JAE Electronics
Series MX49
Package Tray
Operating Temperature Range -40°C ~ 85°C
Mounting Through Hole, Right Angle
Family Name MX49004H
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 670-3090, MX49004HQ1-ND
Quantity per package 1120
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 886642-MX49004HQ1
Ultra Librarian 3D Model Ultra Librarian MX49004HQ1 CAD Model

Description

The MX49004HQ1 connector header from JAE Electronics is a through-hole, right-angle 4 position connector with a pitch of 0.079" (2.00mm).

  • Family Name: MX49
  • Part Name: MX49004H
  • Mounting Type: Through Hole
  • Number of Positions: 4
  • Pitch: 0.079" (2.00mm)
  • Mounting Angle: Right Angle
  • Package: Tray
  • Package Quantity: 1120
  • Operating Temperature: -40°C to 85°C
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
