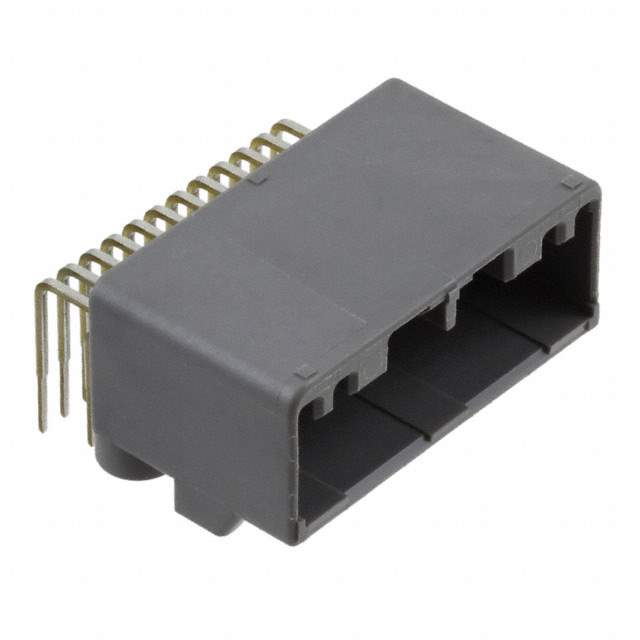

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer JAE Electronics
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.087" (2.20mm)
Number of Positions 24
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.303" (7.70mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.626" (15.90mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Syndiotactic Polystyrene (SPS), Glass Filled
Features Mounting Flange
Temperature Range - Operating -40°C ~ 85°C
Insulation Color Gray
Current Rating (Amps) 3A
Applications Automotive
Manufacturer Pack Quantity 1,024
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802693-MX34024NF1
Ultra Librarian 3D Model Ultra Librarian MX34024NF1 CAD Model

Description

The JAE Electronics MX34024NF1 connector from JAE Electronics.

  • Positions: 24
  • Features: Header with Mounting Flange
  • Gender: Male Pins
  • Mounting Type: Through Hole, Right Angle
  • Shrouding: Shrouded - 4 Walls
  • Row Spacing: 0.118" (3.00mm)
  • Pitch - Mating: 0.087" (2.20mm)
  • Contact Finish - Mating: Tin
  • Contact Finish - Post: Tin
  • Operating Temperature: -40°C to 85°C
  • Insulation Material: Syndiotactic Polystyrene (SPS), Glass Filled
  • Manufacturer Pack Quantity: 1,024
  • Current Rating: 3A
